Manufacturer Part Number:

FPDB50PH60

OneIC Part Number:

3-FPDB50PH60

Manufacturer:

fairchild semiconductor

Description:

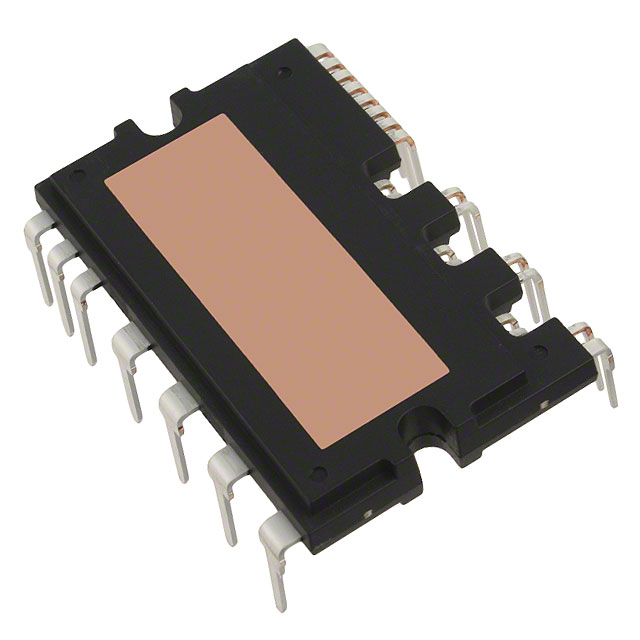

Motor Driver 27-Pin SPM27-HA Rail

Customer Reference:

Datasheet:

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package	27SPM27-HA
Operating Temperature	-20 to 125 °C
Standard Package	Rail / Tube
Type	IGBT
Package / Case	SPM27HA
Current	30A
Voltage	600V
Configuration	2 Phase
Voltage - Isolation	2500Vrms
rohs	Lead free / RoHS Compliant
Channel Type	N
Dimensions	44 x 26.8 x 5.5mm
Height	5.5mm
Length	44mm
Maximum Collector Emitter Voltage	600 V
Maximum Continuous Collector Current	30 A
Maximum Operating Temperature	+125 °C
Maximum Power Dissipation	143 W
Minimum Operating Temperature	-20 °C
Mounting Type	Through Hole
Package Type	SPM27 HA
Pin Count	27
Switching Speed	20kHz
Width	26.8mm
Factory Pack Quantity	10
Product Category	Motor / Motion / Ignition Controllers & Drivers
Series	FPDB50PH60
Unit Weight	0.469849 oz
Packaging	Tube
Power Dissipation	143 W
RoHS	RoHS Compliant
IPM Power Device	:IGBT
Voltage Rating (Vces / Vdss)	:600V
Current Rating (Ic / Id)	:50A
Isolation Voltage	:2500Vrms
IPM Mounting Type	:PCB
IPM Case Style	:SPMHA-027
IPM Series	:SPM3
SVHC	:No SVHC (16-Dec-2013)
Weight (kg)	0.01
Tariff No.	85412900
