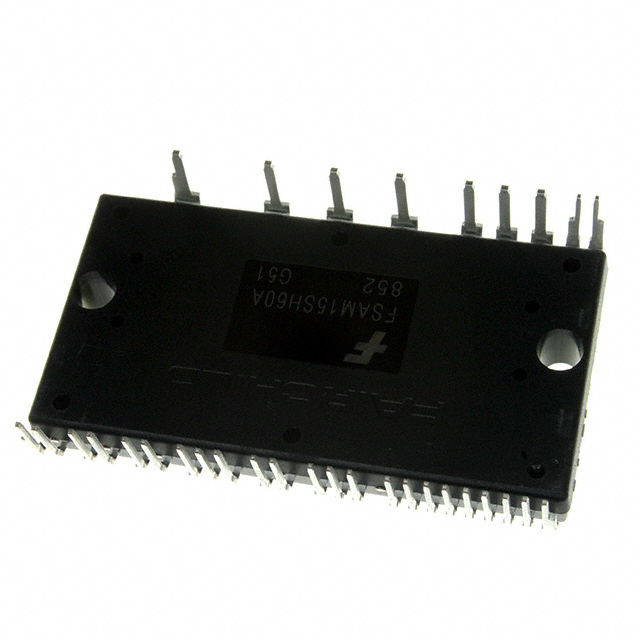

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 32SPM32-AA |
| Operating Temperature | -20 to 125 °C |
| Supplier Package | SPM32-AA |
| EU RoHS | Compliant |
| Pin Count | 32 |
| Voltage - Isolation | 2500Vrms |
| Package / Case | 32-Module |
| Current | 15A |
| Voltage | 600V |
| Standard Package | 8 |
| Configuration | 3 Phase |
| Type | IGBT |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 60 x 31 x 7.2mm |
| Height | 7.2mm |
| Length | 60mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -20 °C |
| Mounting Type | Through Hole |
| Package Type | SPM32 AA |
| Width | 31mm |
| Factory Pack Quantity | 8 |
| Continuous Collector Current at 25 C | 15 A |
| Product Category | IGBT Transistors |
| Series | FSAM |
| Collector-Emitter Saturation Voltage | 2.5 V |
| Collector- Emitter Voltage VCEO Max | 600 V |
| Unit Weight | 1.149226 oz |
| Mounting Style | SMD/SMT |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| IPM Power Device | :IGBT |
| Voltage Rating (Vces / Vdss) | :600V |
| Current Rating (Ic / Id) | :15A |
| Isolation Voltage | :2500Vrms |
| IPM Mounting Type | :PCB |
| IPM Case Style | :SPM32-AA |
| IPM Series | :SPM2 |
| SVHC | :No SVHC (20-Jun-2013) |
| Collector Emitter Voltage V(br)ceo | :600V |
| Collector Emitter Voltage Vces | :2.5V |
| Current Ic Continuous a Max | :15A |
| DC Collector Current | :15A |
| No. of Pins | :32 |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-20°C |
| Operating Temperature Range | :-20°C to +125°C |
| Power Dissipation Max | :50W |
| Pulsed Current Icm | :30A |
| Rise Time | :340ns |
| Transistor Case Style | :SPM32-AA |
| Transistor Polarity | :N Channel |
| Voltage Vces | :600V |
| Weight (kg) | 0.035 |
| Tariff No. | 85423990 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | FSAM15SH60A |
