fairchild semiconductor

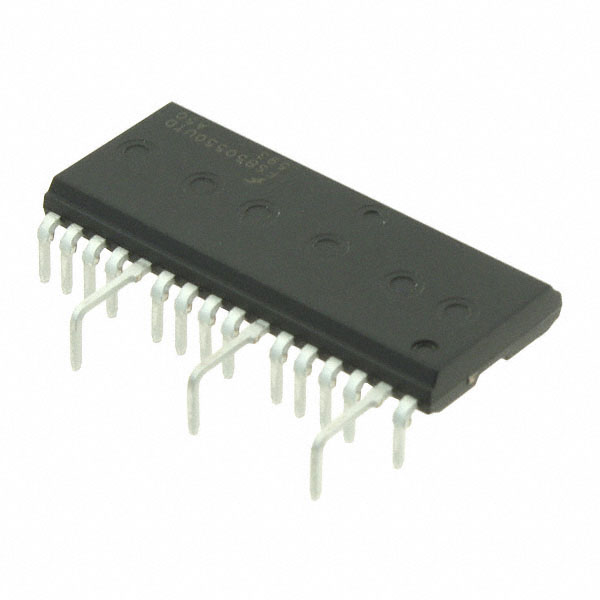

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 23SPM5N |
| Operating Temperature | -40 to 150 °C |
| Standard Package | Rail / Tube |
| Supplier Package | SPM5N |
| EU RoHS | Compliant |
| Pin Count | 23 |
| Voltage - Isolation | 1500Vrms |
| Package / Case | SPM23ED |
| Current | 2A |
| Voltage | 500V |
| Configuration | 3 Phase Bridge |
| Type | FET |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 15 |
| Continuous Collector Current at 25 C | 2 A |
| Product Category | IGBT Modules |
| Series | FSB50550UTD |
| Unit Weight | 0.211291 oz |
| Mounting Style | Through Hole |
| Power Dissipation | 14.5 W |
| Packaging | Tube |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| RoHS | RoHS Compliant |
| DELETED | Compliant |
| Mounting | Through Hole |
| Operating Temperature (Max) | 150C |
| Operating Temperature (Min) | -40C |
| Screening Level | Automotive |
| Rad Hardened | No |
| 电压 - 隔离 | 1500Vrms |
| 系列 | Motion-SPM® |
| 配置 | 3 Phase Bridge |
| 封装/外壳 | SPM23ED |
| 电压 | 500V |
| 类型 | FET |
| 电流 | 2A |
| 封装类型 | SPM5N |
| 输出配置 | 3 相 |
| 最高工作温度 | +150 °C |
| 安装类型 | 通孔 |
| 最大工作电源电压 | 16.5 V |
| 高度 | 3.3mm |
| 最低工作温度 | -40 °C |
| 最小工作电源电压 | 13.5 V |
| 宽度 | 12.2mm |
| 最大隔离额定值 | 1500Vrms |
| 最大集电极-发射极电压 | 500 V |
| 最大IGBT集电极电流 | 2A |
| 引脚数目 | 23 |
| 长度 | 29.2mm |
| 典型开关频率 | 15kHz |
| 电动机类型 | 交流感应 |
| 变换器额定功率 | 14.5W |
| 尺寸 | 29.2 x 12.2 x 3.3mm |
| Operating Temperature Range | - 40 C to + 150 C |
| Brand | Fairchild Semiconductor |
| Pd - Power Dissipation | 14.5 W |
| Product | IGBT Silicon Modules |
| Height | 3.15 mm |
| Length | 29 mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | FSB50550UTD |
