Manufacturer Part Number:

FSB50825US

OneIC Part Number:

3-FSB50825US

Manufacturer:

fairchild semiconductor

Description:

Smart Power Module 23-Pin SPM T/R

Customer Reference:

Datasheet:

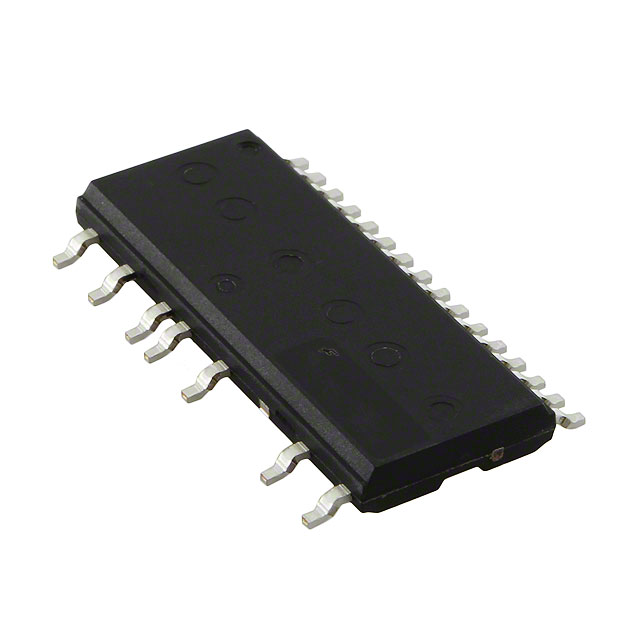

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package	23SPM
Operating Temperature	-40 to 150 °C
Standard Package	Tape & Reel
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	RoHS Compliant
Product	Fan / Motor Controllers / Drivers
Type	Smart Power Modules
Operating Supply Voltage	13.5 V to 16.5 V
Supply Current	160 uA
Mounting Style	SMD/SMT
Package / Case	SPM23-BD
Packaging	Reel
Load Voltage	150 V
Number of Outputs	3
Output Current	4 A
Output Voltage	150 V
Power Dissipation	14 W
Factory Pack Quantity	450
Supplier Package	SPM
EU RoHS	Compliant
Pin Count	23
Voltage - Isolation	1500Vrms
Current	4A
Voltage	250V
Configuration	3 Phase
Other Names	FSB50825USTR
rohs	Lead free / RoHS Compliant
Channel Type	P
Dimensions	29 x 12 x 3.1mm
Height	3.1mm
Length	29mm
Maximum Collector Emitter Voltage	250 V
Maximum Continuous Collector Current	4 A
Maximum Operating Temperature	+150 °C
Maximum Power Dissipation	14 W
Minimum Operating Temperature	-40 °C
Mounting Type	Surface Mount
Package Type	SPM23 BD
Switching Speed	15kHz
Width	12mm
Series	FSB50825US
Unit Weight	0.181379 oz
电压 - 隔离	1500Vrms
系列	Motion-SPM®
配置	3 Phase
封装/外壳	SPM23BD
电压	250V
类型	FET
电流	4A
Operating Supply Current	160 uA
Operating Temperature Range	- 40 C to + 150 C
Brand	Fairchild Semiconductor
Pd - Power Dissipation	14 W
Load Voltage Rating	150 V
