fairchild semiconductor

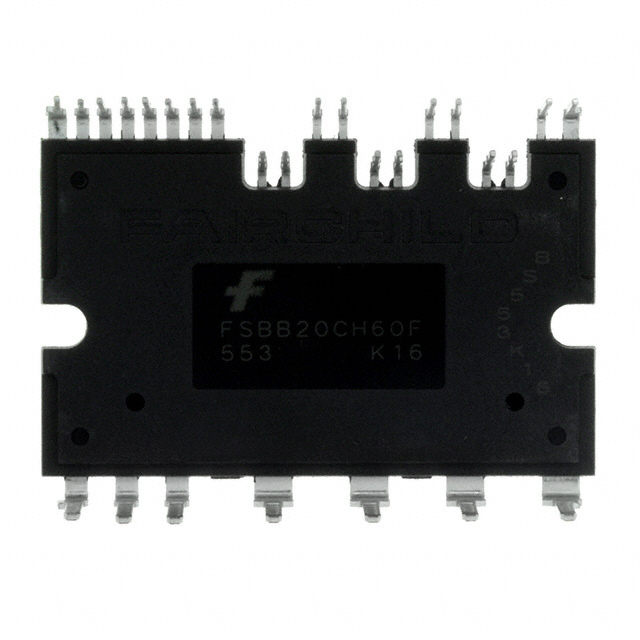

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 27SPM27-CA |
| Operating Temperature | -20 to 125 °C |
| Standard Package | Rail / Tube |
| Supplier Package | SPM27-CA |
| Standard Package Name | SPM27-CA |
| EU RoHS | Compliant |
| Pin Count | 27 |
| Voltage - Isolation | 2500Vrms |
| Package / Case | SPM27CA |
| Current | 20A |
| Voltage | 600V |
| Configuration | 3 Phase |
| Type | IGBT |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 10 |
| Product | IGBT Silicon Modules |
| Product Category | IGBT Modules |
| Gate-Emitter Leakage Current | 250 uA |
| Series | FSBB20CH60F |
| Continuous Collector Current at 25 C | 20 A |
| Collector- Emitter Voltage VCEO Max | 600 V |
| Unit Weight | 0.469849 oz |
| Mounting Style | Through Hole |
| Power Dissipation | 61 W |
| Packaging | Tube |
| Minimum Operating Temperature | - 20 C |
| Collector-Emitter Saturation Voltage | 2.3 V |
| Maximum Operating Temperature | + 125 C |
| RoHS | RoHS Compliant |
| Mounting | Through Hole |
| Package Type | SPM27-CA |
| Operating Temperature (Max) | 125C |
| Operating Temperature (Min) | -20C |
| Case Length | 44 mm |
| Screening Level | Commercial |
| Case Height | 4.5 mm |
| Rad Hardened | No |
| IPM Power Device | :IGBT |
| Voltage Rating (Vces / Vdss) | :600V |
| Current Rating (Ic / Id) | :20A |
| Isolation Voltage | :2500Vrms |
| IPM Mounting Type | :PCB |
| IPM Case Style | :SPMCA-027 |
| IPM Series | :SPM3 |
| SVHC | :No SVHC (16-Dec-2013) |
| Weight (kg) | 0.01 |
| Tariff No. | 85412900 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | FSBB20CH60 |
