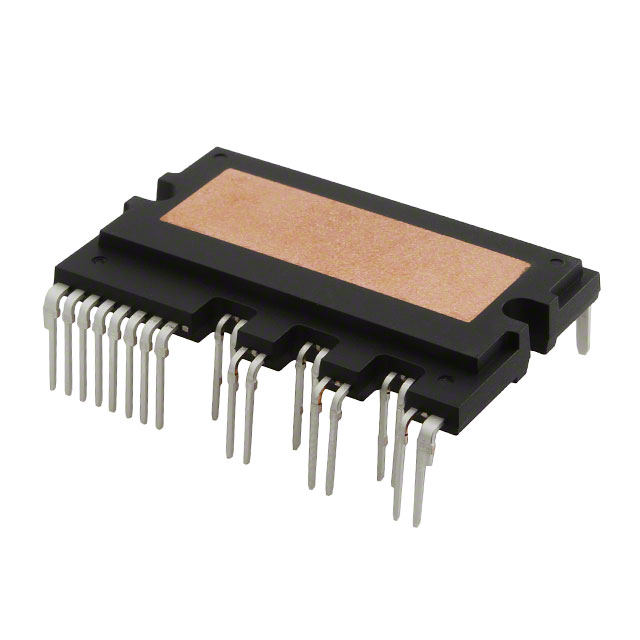

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 27SPM27-EC |
| Operating Temperature | -40 to 150 °C |
| Standard Package | Rail / Tube |
| Standard Package Name | SPM27-EC |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 150 |
| Package Height | 5.5 |
| Mounting | Through Hole |
| Packaging | Rail |
| PCB | 27 |
| Package Width | 26.8 |
| Supplier Package | SPM27-EC |
| Package Length | 44 |
| Minimum Operating Temperature | -40 |
| Pin Count | 27 |
| Voltage - Isolation | 2500Vrms |
| Package / Case | SPM27CC |
| Current | 30A |
| Voltage | 600V |
| Configuration | 3 Phase |
| Type | IGBT |
| rohs | Lead free / RoHS Compliant |
| Channel Type | N |
| Dimensions | 44 x 26.8 x 5.5mm |
| Height | 5.5mm |
| Length | 44mm |
| Maximum Collector Emitter Voltage | 600 V |
| Maximum Continuous Collector Current | 30 A |
| Maximum Operating Temperature | +150 °C |
| Maximum Power Dissipation | 106 W |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Package Type | SPM27 EC |
| Switching Speed | 20kHz |
| Width | 26.8mm |
| Operating Supply Voltage | 13.5 V to 16.5 V |
| Factory Pack Quantity | 10 |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| Series | FSBB30CH60C |
| Unit Weight | 0.775251 oz |
| Mounting Style | Through Hole |
| RoHS | RoHS Compliant |
| Operating Temperature (Max) | 150C |
| Operating Temperature (Min) | -40C |
| Case Length | 44 mm |
| Screening Level | Automotive |
| Case Height | 5.5 mm |
| Rad Hardened | No |
| DELETED | Compliant |
| IPM Power Device | :IGBT |
| Voltage Rating (Vces / Vdss) | :600V |
| Current Rating (Ic / Id) | :30A |
| Isolation Voltage | :2.5kV |
| IPM Mounting Type | :PCB |
| SVHC | :No SVHC (16-Dec-2013) |
| Collector Emitter Voltage V(br)ceo | :600V |
| Collector Emitter Voltage Vces | :2V |
| DC Collector Current | :30A |
| No. of Pins | :27 |
| Operating Temperature Max | :150°C |
| Operating Temperature Min | :-40°C |
| Power Dissipation Pd | :106W |
| Transistor Case Style | :SPMEC-027 |
| Transistor Polarity | :Six NPN |
| Weight (kg) | 0.01 |
| Tariff No. | 85423990 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | FSBB30CH60C |
