fairchild semiconductor

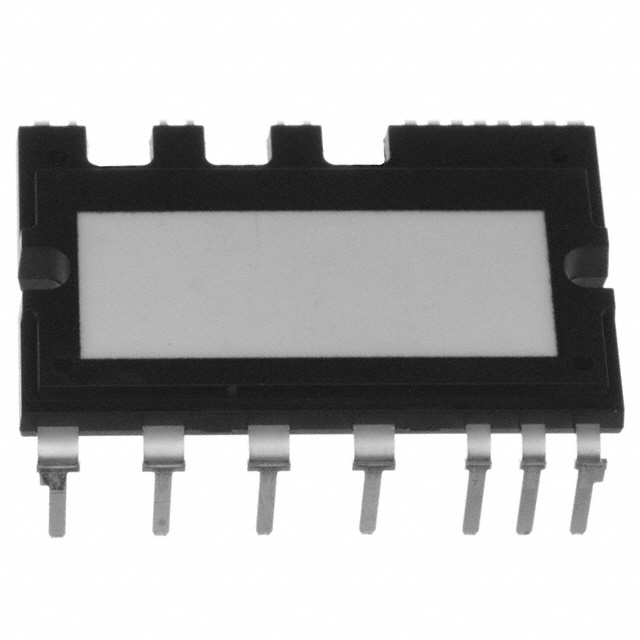

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 27SPM27-BA |
| Operating Temperature | -20 to 125 °C |
| Standard Package | Rail / Tube |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | RoHS Compliant By Exemption |
| Product | Fan / Motor Controllers / Drivers |
| Type | Smart Power Modules |
| Operating Supply Voltage | 13.5 V to 16.5 V |
| Supply Current | 100 uA |
| Mounting Style | SMD/SMT |
| Package / Case | SPM27-BA |
| Packaging | Tube |
| Load Voltage | 300 V |
| Number of Outputs | 3 |
| Output Current | 15 A |
| Output Voltage | 300 V |
| Power Dissipation | 32 W |
| Factory Pack Quantity | 10 |
| Supplier Package | SPM27-BA |
| Standard Package Name | SPM27-BA |
| EU RoHS | Compliant |
| Pin Count | 27 |
| Voltage - Isolation | 2500Vrms |
| Current | 15A |
| Voltage | 600V |
| Configuration | 3 Phase |
| rohs | Lead free / RoHS Compliant |
| Series | FSBS15CH60 |
| Unit Weight | 0.488897 oz |
| Mounting | Through Hole |
| Package Type | SPM27-BA |
| Operating Temperature (Max) | 125C |
| Operating Temperature (Min) | -20C |
| Case Length | 44 mm |
| Screening Level | Commercial |
| Case Height | 5.5 mm |
| Rad Hardened | No |
| 电压 - 隔离 | 2500Vrms |
| 系列 | SPM® |
| 配置 | 3 Phase |
| 封装/外壳 | SPM27BA |
| 电压 | 600V |
| 类型 | IGBT |
| 电流 | 15A |
| 输出配置 | 3 相 |
| 最高工作温度 | +125 °C |
| 安装类型 | 通孔 |
| 高度 | 5.5mm |
| 最低工作温度 | -20 °C |
| 宽度 | 26.8mm |
| 封装类型 | SPM27 BA |
| 最大集电极-发射极电压 | 600 V |
| 最大IGBT集电极电流 | 15A |
| 引脚数目 | 27 |
| 长度 | 44mm |
| 电动机类型 | 交流感应 |
| 尺寸 | 44 x 26.8 x 5.5mm |
| Operating Supply Current | 100 uA |
| Operating Temperature Range | - 20 C to + 125 C |
| Brand | Fairchild Semiconductor |
| Pd - Power Dissipation | 32 W |
| Load Voltage Rating | 300 V |
| Maximum Operating Temperature | + 125 C |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | FSBS15CH60 |
