Manufacturer Part Number:

GP2Y0D02YK0F

OneIC Part Number:

317-GP2Y0D02YK0F

Manufacturer:

Sharp Microelectronics

Description:

Proximity Sensors Distance Measuring Sensor 20-150cm

Customer Reference:

Datasheet:

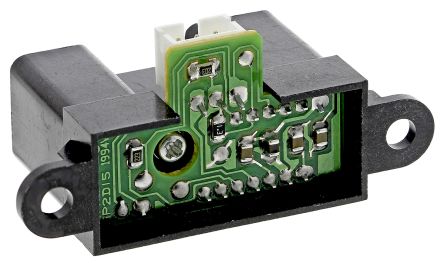

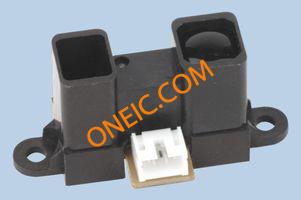

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Product Category	Proximity Sensors
RoHS	RoHS Compliant
Sensing Method	Optical
Sensing Distance	150 cm
Maximum Operating Temperature	+ 60 C
Minimum Operating Temperature	- 10 C
Factory Pack Quantity	500
Life	Obsolete
Output Type	Digital
Current - Supply	33mA
Voltage - Supply	4.5 V ~ 5.5 V
Standard Package	50
Other Names	425-2064
rohs	Lead free / RoHS Compliant
Dimensions	29.5 x 13 x 21.6mm
Height	21.6mm
Length	29.5mm
Mounting Type	PCB Surface Mount
Number of Pins	3
Peak Sensor Distance	150cm
Width	13mm
Sensing Range Max	:800mm
Sensor Output1	:Digital
Supply Voltage DC Min	:4.5V
Supply Voltage DC Max	:5.5V
Detecting Distance	:20cm to 150cm
External Depth	:18.9mm
External Length / Height	:21.6mm
External Width	:44.5mm
Forward Current If(AV)	:50mA
Operating Current DC	:50mA
Operating Temperature Max	:60°C
Operating Temperature Min	:-10°C
Operating Temperature Range	:-10°C to +60°C
Sensing Range	:200mm to 800mm
Supply Voltage Max	:5.5VDC
Supply Voltage Min	:4.5VDC
Supply Voltage Range DC	:4.5V to 5.5V
Voltage Rating V DC	:7V
Voltage Vf Typ	:5.5V
Weight (kg)	0.006
Tariff No.	85414090

Documents & Media

RESOURCE TYPE	LINK
Datasheets	GP2Y0D02YK0F
