te connectivity / amp

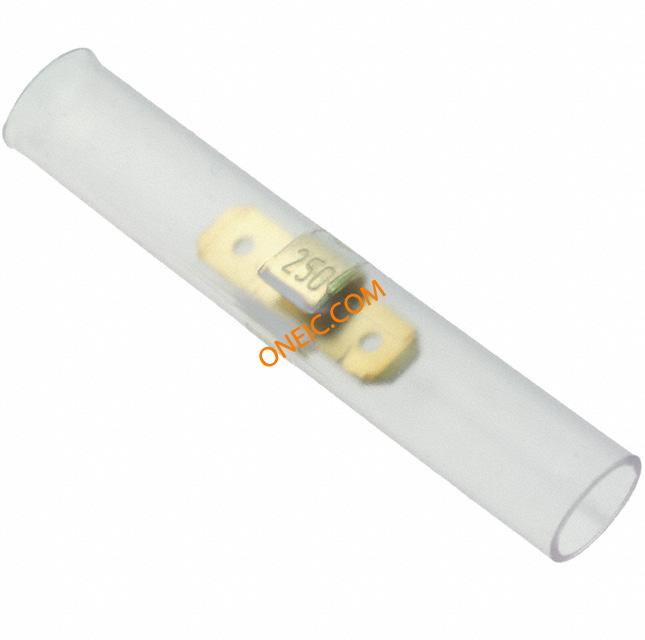

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Splice Terminal |
| Wire Size | 10-22 AWG |
| Standard Package | Bulk |
| Product Category | Terminals |
| RoHS | RoHS Compliant |
| Product | Splices |
| Series | 321 |
| Wire Gauge | 22-10 |
| Stud / Tab Size | 1/4 in |
| Insulation | Insulated |
| Color | Natural |
| Gender | Female |
| Contact Plating | Tin |
| Contact Material | Brass |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Material | Brass |
| Factory Pack Quantity | 1000 |
| Wire Size | 10-22 |
| Product Length | 66.67 |
| EU RoHS | Compliant |
| Packaging | Loose Piece |
| Product Depth | 10.38 |
| Body Material | Brass |
| Comment | Recommended for UL applications. |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| Finish | None |
| CSA Certified | Yes |
| RU (UL Component Program) | Approved |
| Housing Material | PVC |
| Tab Width (mm in) | 6.35 [0.25] |
| Splice Type | Single |
| RoHSELV Compliance History | Always was RoHS compliant |
| Convert To (Adapter End) | 0.25" (6.35mm) 1/4" Quick Connect, Male |
| Convert From (Adapter End) | 0.25" (6.35mm) 1/4" Quick Connect, Male |
| rohs | Lead free / RoHS Compliant |
| Rad Hardened | No |
| Body Plating | Tin |
| Product Length (mm) | 66.68 mm |
| Product Depth (mm) | 10.38 mm |
| 接片厚度 | 0.81mm |
| 接片宽度 | 6.35mm |
| 适配器类型 | 包容式至包容式 |
| 端 1 类型 | Faston 接片端子 |
| 端 2 类型 | Faston 接片端子 |
| 接片尺寸 | 6.35 x 0.81mm |
| 主体材料 | 黄铜 |
| RU (UL コンポーネント プログラム) | 已批准 |
| 注释 | 建议用于 UL 应用。 |
| Insulated | Yes |
| スプライス容量 | 1 |
| 电镀材料 | 无镀层 |
| 绝缘材料 | 乙烯基 |
| 封装数量 | 1 |
| 封装方法 | 包装 |
| 锯齿 | 否 |
| 端子和接头种类 | 接头 |
| 外壳材料 | PVC |
| 产品类型 | 对接接头 |
| Sealable | 否 |
| 1 個あたりの重量 (g) | 1.631 |
| 获得 CSA 认证 | 是 |
| スプライスの材料 | 黄铜 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 321235 |
| Datasheets | SPLICE, RECEPTACLE, FASTON, 250 SERIES WIRE SIZE: 22-10 |
| Datasheets | 3D PDF |
| Datasheets | 1773464-1_QRG_PIDG_TERMINALS_AND_SPLICES |
| Datasheets | MD_1-321235-0_02142017851_dmtec |
| Datasheets | Cigarette Splice |
| Datasheets | QUICK CONNECT TABS |
