te connectivity / amp

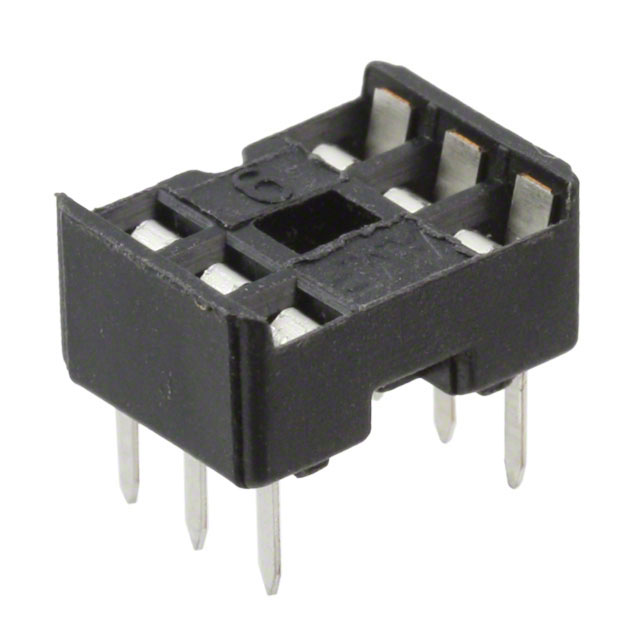

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | DIP Socket |
| Gender | SKT |
| Number of Contacts | 6 |
| Pitch | 2.54 mm |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Straight |
| Number of Rows | 2 |
| Standard Package | Rail / Tube |
| Maximum Current Rating | 1/Contact |
| Housing Material | Polybutylene Terephthalate |
| EU RoHS | Compliant |
| Insulation Resistance | 10000 |
| Maximum Voltage Rating | 250VAC |
| Contact Plating | Tin Over Nickel |
| Product Length | 7.62 |
| Row Spacing | 7.62 |
| Pitch | 2.54 |
| Maximum Insertion Force | 300g |
| Maximum Contact Resistance | 30 |
| Product Depth | 10 |
| Product Height | 5.1 |
| Packaging | Tube |
| Insulation Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Mating Contact Type | Dual Leaf |
| PCB Mount Angle | Horizontal |
| Contact Style | Stamped + Formed |
| Contact Resistance (mΩ) | 30 |
| Contact Mount | Thru Hole |
| Number of Positions | 6 |
| Profile | Standard |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Row-to-Row Spacing (mm in) | 7.62 [0.300] |
| Centerline (mm in) | 2.54 [0.100] |
| Leg Style | Straight |
| Product Type | DIP Socket |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Frame Style | Ladder |
| Packaging Method | Tube |
| Contact Mating Area Plating Material | Tin |
| Temperature Range (°C) | -40 â +105 |
| Insulation Resistance (MΩ) | 10,000 |
| Mount Style | Vertical |
| Height Above PC Board (mm (in)) | 5.10 [0.200] |
| RoHSELV Compliance History | Always was RoHS compliant |
| Termination (Solder) Post Length (mm (in)) | 3.00 [0.118] |
| Features | Open Frame |
| Mounting Type | Through Hole |
| Contact Finish | Tin |
| Number of Positions or Pins (Grid) | 6 (2 x 3) |
| Contact Finish Thickness | 60µin (1.52µm) |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 8000 |
| Product | DIP / SIP Sockets |
| Product Category | IC & Component Sockets |
| Current Rating | 1 A |
| Operating Temperature Range | - 40 C to + 105 C |
| Voltage Rating | 250 V |
| Termination Style | Solder Tail |
| Socket / Case Type | Ladder Frame |
| Number of Positions / Contacts | 6 |
| Mounting Style | Through Hole |
| Case Style | DIP |
| Row Spacing | 7.62 mm |
| RoHS | RoHS Compliant |
| Operating Temp Range | -40C to 105C |
| Rad Hardened | No |
| Contact Resistance Max | 30 mohm |
| Insertion Force | 300 |
| Insulation Resistance | 10000 Mohm |
| Number of Contact Rows | 2 |
| Grid Size | Not Required |
| Product Length (mm) | 7.62 mm |
| Product Depth (mm) | 10 mm |
| Product Height (mm) | 5.1 mm |
| Pitch (mm) | 2.54 mm |
| Row Spacing (mm) | 7.62 mm |
| Connector Type | :DIP Socket |
| Series | :- |
| No. of Contacts | :6 |
| Pitch Spacing | :2.54mm |
| Row Pitch | :7.62mm |
| Contact Termination | :Solder |
| External Width | :0.318" |
| Weight (kg) | 0.002 |
| Tariff No. | 85366910 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 390261 |
