te connectivity / amp

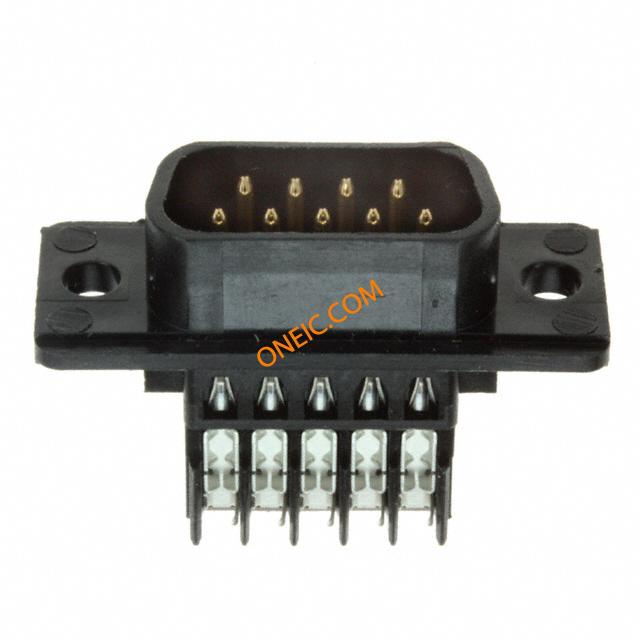

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Standard Package | Trays |
| Product Category | D-Sub Standard Connectors |
| RoHS | RoHS Compliant |
| Number of Positions / Contacts | 9 |
| Number of Rows | 2 |
| Mounting Style | Wire |
| Contact Plating | Matte Tin over Nickel |
| Packaging | Tray |
| Shell Plating | Gold over Nickel |
| Factory Pack Quantity | 140 |
| Contacts | With |
| Housing Material | Thermoplastic |
| Shell Size | 1 |
| Mating Connector Lock Type | Mounting Holes |
| Number of Positions | 9 |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| Product Series | HDE-20 (IDC) |
| Solder Tail Contact Plating | Matte Tin over Nickel |
| Product Type | Connector |
| Contact Size | 20 |
| Gender | Plug |
| Grounding Indents | Without |
| Contact Mating Area Plating Material | Gold Flash over Palladium Nickel or Gold (30) over Nickel |
| WireCable Type | Discrete Wire, Round Jacketed Cable |
| Housing Flammability Rating | UL 94V-0 |
| Comment | All connectors are preloaded. Individual conductor strands should be larger tha |
| Wire Termination Type | Insulation Displacement Crimp (IDC) |
| Color | Black |
| Wire Insulation Diameter (mm (in)) | 1.52 [0.060] |
| Grade | Standard |
| Shell Type | All Plastic |
| Wire Range (mm² (AWG)) | 0.15 - 0.40 [26-22] |
| RoHSELV Compliance History | Always was RoHS compliant |
| Mating Connector Lock | With |
| Contact Material | Phosphor Bronze |
| Shell Size, Connector Layout | 1 (DE, E) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) |
| Voltage Rating | 250V |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Operating Temperature | -55°C ~ 105°C |
| Termination | IDC, Discrete Wire |
| Contact Type | Signal |
| Current Rating | Varies by Wire Gauge |
| Contact Finish Thickness | Flash |
| Connector Style | D-Sub |
| rohs | Lead free / RoHS Compliant |
| Operating Voltage (Max) | 250VAC |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Number of Ports | 1 Port |
| Body Orientation | Straight |
| Type | D-Subminiature |
| Number of Contact Rows | 2 |
| Number of Contacts | 9 POS |
| Plug / Receptacle | PIN |
| Product Length (mm) | 30.81 mm |
| Product Depth (mm) | 12.92 mm |
| Product Height (mm) | 12.92 mm |
| Number of Terminals | 9 |
| Termination Method | IDT |
| Contact Pitch (mm) | 2.74 mm |
| 触点数目 | 9 |
| 连接器类型 | 公插 |
| 系列 | AMPLIMITE HDE-20 |
| 主体向性 | 直 |
| 触点尺寸 | 20 |
| 触点材料 | 磷铜 |
| 宽度 | 0.86in |
| 外壳材料 | 热塑性 |
| 深度 | 0.509in |
| 触点电镀 | 金 |
| 长度 | 1.213in |
| 尺寸 | 1.213 x 0.86 x 0.509in |
| 端子接触部电镀厚度 (µin) | 30 |
| Centerline (Pitch) | 2.77 mm [ .054 in ] |
| 外壳尺寸 | 1 |
| 线径范围 | .15 – .4 mm² [ 26 – 22 AWG ] |
| 端子类型 | 插针 |
| PCB 安装固定类型 | 无 |
| 封装方法 | 包装 |
| 屏蔽 | 是 |
| 端子基材 | 磷青铜 |
| 行数 | 2 |
| UL 易燃性等级 | UL 94V-0 |
| 线缆端接方法 | 刺破式压接 (IDC) |
| 颜色 | 黑色 |
| 接合连接器锁扣类型 | 安装孔 |
| 端子接触部电镀材料 | 镀薄金 |
| 外壳 | 不带 |
| 安装角度 | 直式 |
| 等级 | 标准 |
| Solid Wire Range (AWG) | 22 – 20 |
| 预装 | 是 |
| Solder Tail Contact Plating Finish | Matte |
| 线缆类型 | 分离式导线, 环状护套电缆 |
| 焊尾端子电镀材料 | 镍打底镀锡 |
| 端子大小 | 20 |
| 产品类型 | 连接器 |
| 电线绝缘直径 | 1.52 mm [ .06 in ] |
| 封装数量 | 140 |
| 注释 | HDE 连接器设计用于端接实心或分股（最多 7 股）导线。, 单独导体绞线的直径应大于 .127 英寸 [.005]。, 所有连接器都已预装。单独导体绞线的直径应大于 .13 [.005]。端子接受的最大导线绝缘厚度为 .38 [.015]。HDE 连接器设计用于端接实心或分股（最多 7 股）导线。 |
| 连接器种类 | 插头 |
