te connectivity / amp

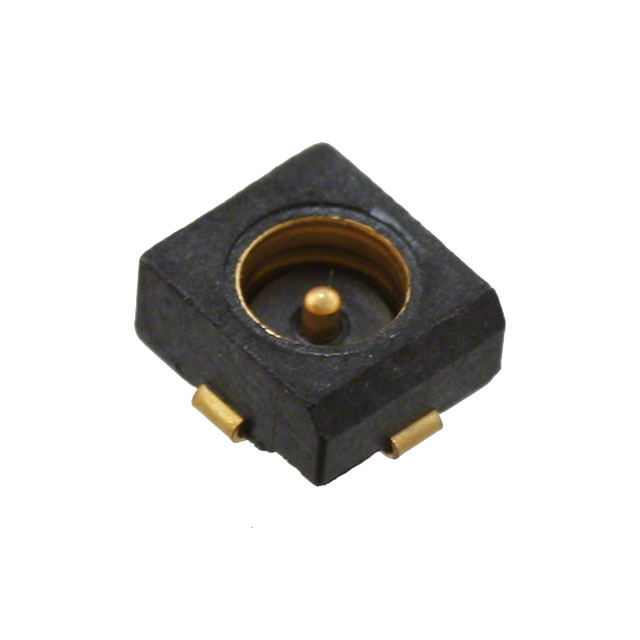

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | OSMT |
| Gender | PL |
| Impedance | 50 Ohm |
| Operating Frequency | 0 to 6 GHz |
| Termination Method | Solder |
| Mounting | Surface Mount |
| Body Orientation | Straight |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Over Nickel |
| Family | 1055687 |
| Terminate To | PCB |
| Standard Package | Bulk |
| Comment | Requires part number 1221286-1 Engagement/Disengagement Tool. |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| Cable Entry Angle | Multi-Directional |
| Brand | AMP |
| Packaging Method | Bulk |
| Connector Type | OSMT, SSMT |
| Contact Finish | Gold over Nickel |
| Housing Material | Polyphenylene Sulfide |
| RoHSELV Compliance History | Always was RoHS compliant |
| Center Contact Plating | Gold |
| Mounting Type | Surface Mount |
| Contact Termination | Solder, Microstrip |
| Shield Termination | Solder |
| Center Contact Material | Copper Alloy |
| Packaging | Bulk |
| Frequency - Max | 6GHz |
| Connector Style | OSMT |
| Fastening Type | Snap-On |
| rohs | Lead free / RoHS Compliant |
| Operating Temp Range | -40C to 125C |
| Rad Hardened | No |
| Termination | Solder |
| Mounting Style | Surface Mount |
| Product Length (mm) | 4.5 mm |
| Product Depth (mm) | 5 mm |
| Body Style | Straight |
| Product Height (mm) | 2.06 mm |
| Angle | Straight |
| ContactPlating | GoldoverNickel |
| MatingType | Push-Pull |
| MountingType | SMT |
| Polarity | Normal |
| PrimaryType | SSMT |
| Size | Micro |
| 连接器类型 | Plug, Male Pin |
| 保护端接 | Solder |
| 系列 | AMP |
| 紧固类型 | Snap-On |
| 阻抗 | 50 Ohm |
| 连接器样式 | OSMT |
| 触头端接 | Solder, Microstrip |
| 装配类型 | Surface Mount |
| 频率 - 最大值 | 6GHz |
| 主体向性 | 直 |
| 安装类型 | 表面安装 |
| 触点材料 | 铜合金 |
| 端接方法 | 焊接 |
| 触点电镀 | 金镀镍 |
| 工作频率 | 0 → 6GHz |
| 注释 | 需要料号 1221286-1 接合/脱离工具。 |
| 连接器接口 | SSMT |
| 中心端子电镀材料 | 镍打底镀金 |
| 电缆入口 | 多向 |
| 中心端子材料 | 铜合金 |
| 封装方法 | Bag |
| 连接器种类 | 插头 |
| 连接器和端子端接到 | 印刷电路板 |
| PCB 安装角度 | 垂直 |
| PC 板端接方法 | 表面贴装 |
| 主体材料 | 聚苯硫醚 (PPS) |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 1055687 |
| Datasheets | STRAIGHT OSMT PCB MOUNT PLUG RECEPTACLE |
| Datasheets | 3D PDF |
| Datasheets | 1-1773725-8_RF_COAX_QRG |
| Datasheets | MD_1055687-1_12132016636_dmtec |
