te connectivity / amp

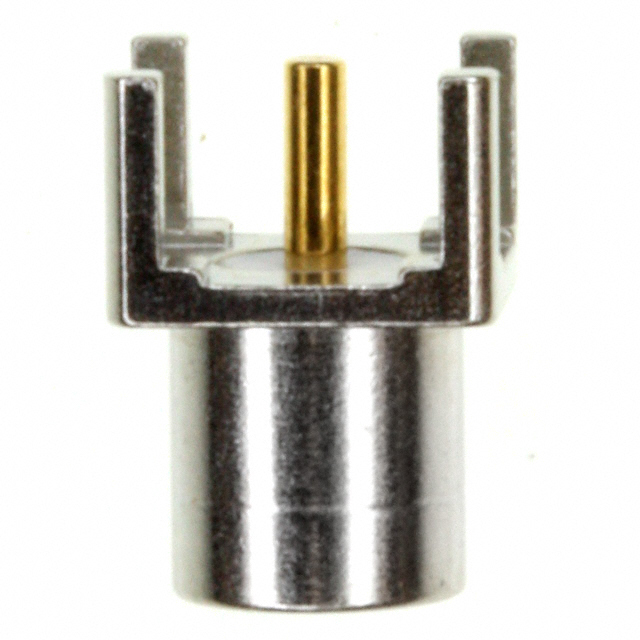

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | MCX |
| Gender | RCP |
| Impedance | 50 Ohm |
| Operating Frequency | 0 to 6 GHz |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Straight |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Family | 1060985 |
| Terminate To | PCB |
| Standard Package | Bulk |
| Center Contact Plating | Gold |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance History | Always was RoHS compliant |
| Brand | AMP |
| Center Contact Material | Beryllium Copper |
| Number of Mounting Legs | 4 |
| Connector Length (mm (in)) | 8.28 [0.326] |
| Connector Impedance (Ω) | 50 |
| PCB Retention Feature | Yes |
| PCB Retention Method | Solder Tail (Pin) |
| Body Style | Straight |
| Product Type | Jack |
| Dielectric Material | TFE Fluorocarbon |
| Panel Attachment | Without |
| Body Material | Brass |
| Mounting Type | Through Hole |
| Voltage Rating | 335V |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Connector Type | Jack, Female Socket |
| Packaging | Bulk |
| Frequency - Max | 6GHz |
| Connector Style | MCX |
| Body Finish | Nickel |
| Operating Temperature | -65°C ~ 165°C |
| Fastening Type | Snap-On |
| rohs | Lead free / RoHS Compliant |
| Operating Temp Range | -65C to 165C |
| Rad Hardened | No |
| Termination | Solder |
| Mounting Style | Through Hole |
| Insulation Material | Polytetrafluoroethyl |
| Body Plating | Nickel |
| Product Length (mm) | 6 mm |
| Product Depth (mm) | 6 mm |
| Product Height (mm) | 5.36 mm |
| Angle | Straight |
| Application | Commercial |
| ContactPlating | Gold |
| Finish,Housing | Nickel |
| Material,Contact | BerylliumCopper |
| Material,Dielectric | TFE |
| Material,Housing | Brass |
| MatingType | Snap-On |
| MountingType | 4-HoleFlange |
| Polarity | Normal |
| PrimaryType | MCX |
| Size | Micro |
| Voltage,Rating | 335V |
| 连接器类型 | Jack, Female Socket |
| 保护端接 | Solder |
| 系列 | AMP |
| 紧固类型 | Snap-On |
| 阻抗 | 50 Ohm |
| 连接器样式 | MCX |
| 触头端接 | Solder |
| 装配类型 | Through Hole |
| 外壳颜色 | Silver |
| 频率 - 最大值 | 6GHz |
| 主体向性 | 直 |
| 安装类型 | 通孔 |
| 触点材料 | 铍铜 |
| 端接方法 | 焊接 |
| 触点电镀 | 金 |
| 工作频率 | 0 → 6GHz |
| PCB 安装固定 | 不带 |
| 连接器接口 | MCX |
| 阻抗 (Ω) | 50 |
| 中心端子电镀材料 | 金 |
| 中心端子电镀厚度 (µin) | 1397 |
| 封装方法 | Carton |
| 连接器种类 | 插座 |
| 连接器和端子端接到 | 印刷电路板 |
| 安装支脚数量 | 4 |
| 主体电镀材料 | 镍 |
| PCB 安装角度 | 垂直 |
| 电介质材料 | TFE 碳氟化合物 |
| 主体形状 | 圆形 |
| 主体材料 | 黄铜 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | MCX Datasheet |
| Datasheets | 1060985-1 |
| Datasheets | OSX PRINTED WRING BOARD JACK RECEPTACLE STRAIGHT TERMINAL |
| Datasheets | 3D PDF |
| Datasheets | MCX Connectors |
| Datasheets | 1-1773725-8_RF_COAX_QRG |
| Datasheets | MD_1060985-1_010520152131_dmtec |
