te connectivity / amp

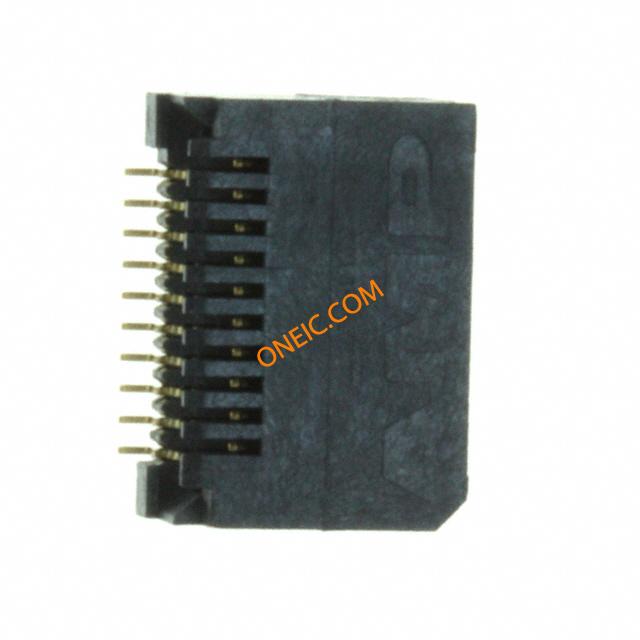

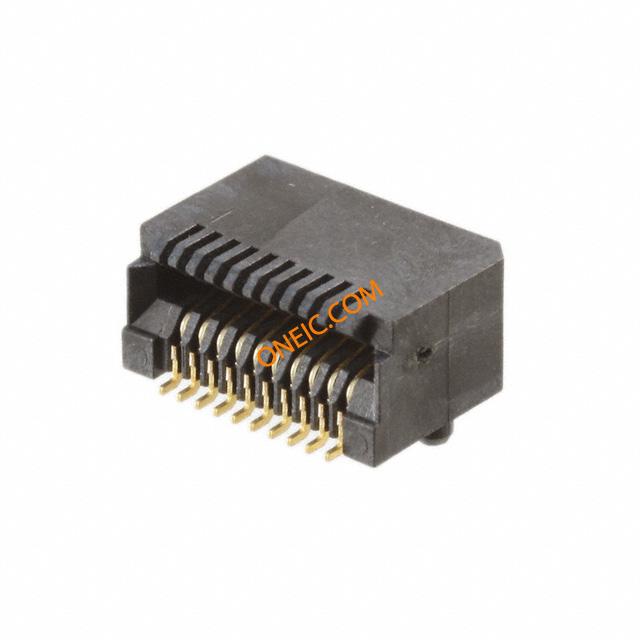

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | SFP |
| Gender | RCP |
| Pitch | 0.8 mm |
| Termination Method | Solder |
| Mounting | Surface Mount |
| Body Orientation | Right Angle |
| Standard Package | Tape & Reel |
| Standard Package | Bulk |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| PCB Mount Style | Single Sided, Double Sided |
| Brand | AMP |
| Packaging Method | Reel |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Black |
| Termination Type | Surface Mount |
| Contact Mating Area Plating Material | Gold (30) over Nickel |
| Housing Flammability Rating | UL 94V-0 |
| Product Type | Connector |
| RoHSELV Compliance History | Always was RoHS compliant |
| Number of Positions | 20 |
| Contact Material | Phosphor Bronze |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | SFP |
| Contact Finish | Gold |
| Packaging | Tape & Reel (TR) |
| Termination | Solder |
| Contact Finish Thickness | 30µin (0.76µm) |
| Connector Style | Receptacle |
| rohs | Lead free / RoHS Compliant |
| Other Names | A97431CT |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
| Number of Ports | 1 |
| Factory Pack Quantity | 480 |
| Product | SFP Connectors |
| Product Category | I/O Connectors |
| Flammability Rating | UL 94 V-0 |
| Color | Black |
| Mounting Angle | Right |
| Number of Positions / Contacts | 20 |
| Mounting Style | SMD/SMT |
| RoHS | RoHS Compliant |
| Operating Temp Range | -55C to 85C |
| Positions Loaded | 20 |
| Current Rating (Max) | 0.5/Contact A |
| Product Length (mm) | 11.2 mm |
| Product Height (mm) | 5.4 mm |
| Voltage Rating Max | 120VAC |
| Pitch (mm) | 0.8 mm |
| Family | 1367073 |
| Series | :- |
| No. of Contacts | :20 |
| Contact Termination | :Surface Mount Right Angle |
| Connector Mounting | :PCB |
| Weight (kg) | 0.02 |
| Tariff No. | 85366930 |
| NumberofContacts | 20 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 1367073 Drawing |
| Datasheets | PT CONNECTOR ASSEMBLY, 20 POSITION, SFP, RTANG, 08MM |
| Datasheets | 3D PDF |
| Datasheets | 1773408-1 Pluggable Input/Output Solutions catalog - SFP section |
| Datasheets | 4-1773455-4 Quick Reference Guide SFP Solutions |
| Datasheets | Small Form-Factor Pluggable (SFP) Ganged Press-Fit PT Connector and Cage Assembly |
| Datasheets | Small Form-Factor Pluggable (SFP) DWDM (Dense Wavelength Division Multiplexer) Connector and Cage Assembly |
| Datasheets | Small Form-Factor Pluggable (SFP) Connector and Cage Assembly |
| Datasheets | SFP 20 Position Connector |
| Datasheets | SFP Cage Assemblies |
| Datasheets | SFP Cage Assemblies |
| Datasheets | Small Form Factor Pluggable, 08 mm Centerline Connectors |
| Datasheets | SFP HSSDC II Copper Module Transceiver |
| Datasheets | MD_1367073-2_05112017510_dmtec |
| Datasheets | Small Form-Factor Pluggable (SFP) DWDM (Dense Wavelength Division Multiplexer) Connectors and Cage Assembly |
| Datasheets | Small Form-Factor Pluggable (SFP) Connector and Cage Assembly |
