te connectivity / p&b

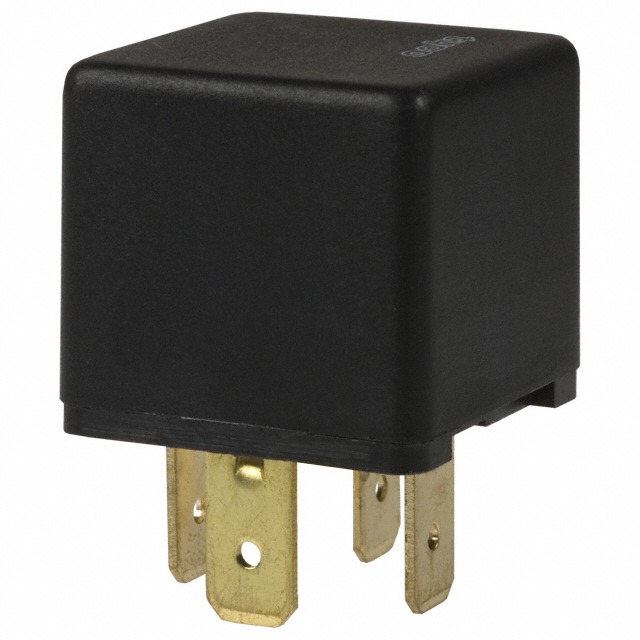

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | General Purpose Relay |
| Contact Arrangement | SPDT |
| Maximum Current Rating | 90(NO)/30(NC) A |
| DC Coil Voltage | 12 V |
| Mounting | Plug-In |
| Coil Current | 133.3 mA |
| Coil Resistance | 90 Ohm |
| Contact Material | Silver Tin Oxide |
| Maximum DC Voltage Rating | 16 V |
| Operating Temperature | -40 to 85 °C |
| Standard Package | Bulk |
| Product Category | Automotive Relays |
| RoHS | RoHS Compliant |
| Contact Form | 1 Form C (SPDT-BM) |
| Contact Current Rating | 30 A |
| Coil Voltage | 12 VDC |
| Switching Voltage | 14 VDC |
| Mounting Style | Socket |
| Contact Termination | Plug In |
| Power Consumption | 1.6 W |
| Factory Pack Quantity | 400 |
| Turn On Voltage (Max) | 7.8 VDC |
| Coil Type | Non Latching |
| Turn Off Voltage (Min) | 1.2 VDC |
| Coil Power | 1.6 W |
| Relay Type | Automotive |
| Termination Style | Plug In, QC - 0.250" (6.3mm) |
| Release Time | 5ms |
| Packaging | Bulk |
| Operate Time | 8ms |
| Contact Rating (Current) | 30A |
| Mounting Type | Socketable |
| rohs | Lead free / RoHS Compliant |
| Application | Automotive |
| Contact Configuration | SPDT |
| Maximum Switching Voltage DC | 14V dc |
| DELETED | Compliant |
| Operating Temp Range | -40C to 85C |
| Pick-up Voltage (Max) | 7.8VDC |
| Pin Count | 5 |
| Dropout Volt (Min) | 1.2VDC |
| Rad Hardened | No |
| Seal | Unsealed |
| Product Length (mm) | 26.5 mm |
| Product Depth (mm) | 26.5 mm |
| Product Height (mm) | 24.5 mm |
| Coil Voltage DC | 12V |
| Relay Construction | Non-Latching |
| Coil Suppression Diode | No |
| LED Indicator | No |
| Push To Test Button | No |
| Dropout Volt | 1.2VDC |
| Voltage Rating (VDC) | 16 V |
| Coil Voltage VDC Nom | :12V |
| Contact Current Max | :40A |
| Contact Voltage DC Nom | :16V |
| Relay Mounting | :Quick Connect |
| External Height | :24.5mm |
| Depth | :25.9mm |
| Weight (kg) | 0 |
| Tariff No. | 85364110 |
| Brand/Series | VF4Series |
| ContactForm | DPDT |
| CurrentRating | 30A |
| Current,Rating | 40A(NO)/30A(NC) |
| Function | Automotive |
| MountingType | Socket |
| NumberofPins | 5 |
| RelayType | Mini-ISO |
| Voltage,Control | 12VDC |
| Voltage,Rating | 14VDC |
