Manufacturer Part Number:

1658612-3

OneIC Part Number:

35-1658612-3

Manufacturer:

te connectivity / amp

Description:

Conn D-Subminiature SKT 15 POS 2.76mm IDT RA Cable Mount 15 Terminal 1 Port

Customer Reference:

Datasheet:

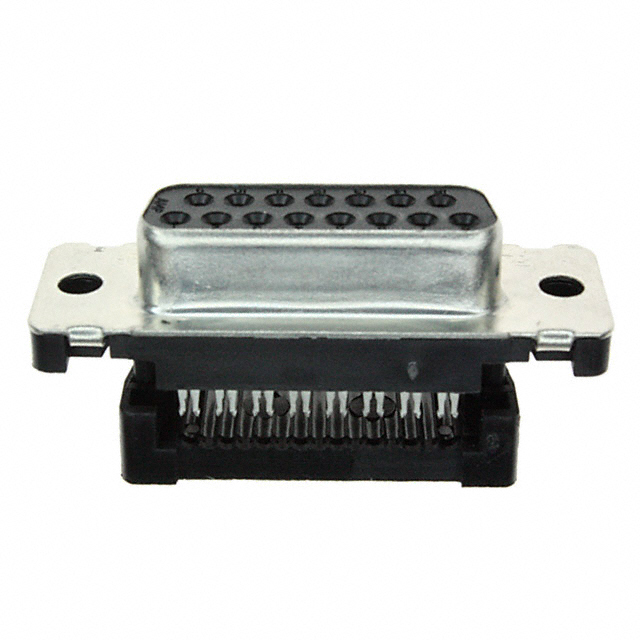

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	D-Subminiature
Gender	SKT
Pitch	2.76 mm
Termination Method	IDT
Mounting	Cable Mount
Body Orientation	Right Angle
Standard Package	Rail / Tube
Product Category	D-Sub Standard Connectors
RoHS	RoHS Compliant
Number of Positions / Contacts	15
Number of Rows	2
Mounting Style	Wire
Termination Style	IDC
Contact Material	Phosphor Bronze
Contact Plating	Gold
Packaging	Tube
Series	16586
Shell Material	Steel
Shell Plating	Bright Tin
Shell Size	2
Factory Pack Quantity	1
Contacts	With
Housing Material	Thermoplastic
Mating Connector Lock Type	Mounting Holes
Number of Positions	15
Profile	Low
Lead Free Solder Processes	Not relevant for lead free process
Product Series	HDF-20 (Ribbon Cable)
Solder Tail Contact Plating	Tin over Nickel
Product Type	Connector
Cable Insulation Diameter (mm in)	0.81 â 0.97 [0.032 â 0.038]
RoHSELV Compliance	RoHS compliant, ELV compliant
Contact Size	20
Grounding Indents	Without
Strain Relief Part Number	747275-3
Contact Mating Area Plating Material	Gold (30)
WireCable Type	Ribbon Cable
Housing Flammability Rating	UL 94V-0
Optional Cable Stabilizer	747275-3
Ribbon Cable Centerline Spacing (mm in)	1.27 [0.050]
Wire Termination Type	Insulation Displacement Crimp (IDC)
Color	Black
Cover Material	Thermoplastic
Mating Connector Lock	With
Grade	Standard
Wire Range (mm² AWG)	0.08 - 0.15 [28-26]
Shell Type	Front Metal Shell
RoHSELV Compliance History	Always was RoHS compliant
Comment	All plug assemblies are supplied with housing and cover preassembled
Shell Size, Connector Layout	2 (DA, A)
Flange Feature	Housing/Shell (Unthreaded)
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Connector Type	Receptacle, Female Sockets
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Operating Temperature	-55°C ~ 105°C
Termination	IDC, Ribbon Cable
Contact Type	Signal
Current Rating	1.25A
Contact Finish Thickness	30µin (0.76µm)
Connector Style	D-Sub
rohs	Lead free / RoHS Compliant
CAD Drawing	3D CAD Model
Depth	12.59mm
Dimensions	39.14 x 18.61 x 12.59mm
Length	39.14mm
Maximum Operating Temperature	+105°C
Minimum Operating Temperature	-55°C
Number of Contacts	15
Voltage Rating	250 V ac
Width	18.61mm
Operating Voltage (Max)	250VAC
Operating Temp Range	-55C to 105C
Rad Hardened	No
Number of Ports	1 Port
Number of Contact Rows	2
Plug / Receptacle	SKT
Product Length (mm)	39.14 mm
Product Depth (mm)	12.59 mm
Product Height (mm)	18.61 mm
Number of Terminals	15
Contact Pitch (mm)	2.76 mm
Product Range	:TE CONNECTIVITY - Amplimite HDF-20 Series
No. of Contacts	:15
D Sub Shell Size	:DA
Connector Body Material	:Metal
Contact Termination	:IDC / IDT
Approval Bodies	:CSA, UL
Connector Mounting Orientation	:Cable
Contact Current Rating	:1.25A
Contact Resistance	:25mohm
Flammability Rating	:UL94V-0
Material	:Black Thermoplastic
Weight (kg)	0.01
Tariff No.	85369010

Documents & Media

RESOURCE TYPE	LINK
Datasheets	1658612
Datasheets	RCPT ASSY, FRONT METAL SHELL, LEAD-FREE, AMPLIMITE HDF
Datasheets	3D PDF
Datasheets	AMPLIMITE Subminiature D Connectors - Cable Connectors
Datasheets	AMPLIMITE HDF-20 Low Profile Connector
Datasheets	AMPLIMITE MDF-20 Low Profile Connector
Datasheets	AMPLIMITE MDF-20 Low Profile Connector
Datasheets	MD_1658612-3_0510201284
Datasheets	Connector-Specific Kit 768349-1 for AMP-LATCH HDF Low-Profile Connectors
