te connectivity / amp

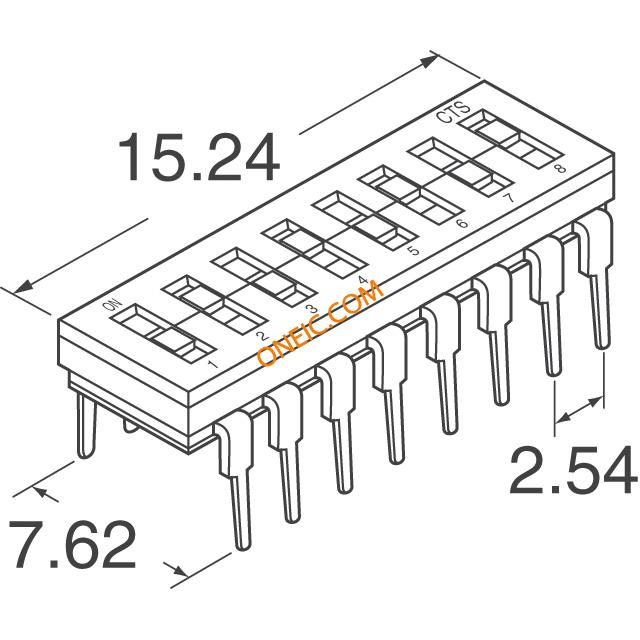

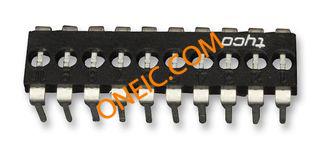

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Shunt |
| Switch Type | DIP Switch |
| Standard Package | Rail / Tube |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| PCB Mount Style | Thru Hole |
| Solder Tail Contact Plating | Tin |
| Brand | Alcoswitch |
| Centerline (mm in) | 2.54 [0.100] |
| Housing Material | PBT - GF 30 |
| Centerline Matrix (mm (in)) | 2.54 x 7.62 [.100 x .300] |
| Housing Color | Black |
| Housing Flammability Rating | UL 94V-0 |
| Product Type | DIP Shunt |
| RoHSELV Compliance History | Always was RoHS compliant |
| Number of Positions | 6 |
| Contact Material | Copper Alloy |
| Washable | Yes |
| Actuator Type | Breakable (Shunt) |
| Mounting Type | Through Hole |
| Circuit | Programmable |
| Orientation | Top Actuated |
| Other Names | 18251905 |
| Actuator Level | Flush |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 35 |
| Mounting Angle | Straight |
| Product Category | DIP Switches / SIP Switches |
| Terminal Pitch | 2.54 mm |
| Mounting | Through Hole |
| Termination Style | Solder |
| Packaging | Tube |
| Series | 7600 |
| Actuator | Screwdriver |
| RoHS | RoHS Compliant |
| Contact Configuration | :(Not Applicable) |
| No. of Switch Positions | :6 |
| Actuator Style | :- |
| Pitch Spacing | :2.54mm |
| Switch Mounting | :Through Hole |
| Lead Spacing | :2.54mm |
| No. of Positions | :6 |
| Terminal Type | :Through Hole |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Shunt, DIP, Programmable |
| Datasheets | SHUNT, DIP, PROGRAMMABLE |
| Datasheets | SWITCHES_CORE_PROGRAM_CATALOG |
| Datasheets | Programmable DIP Shunts |
