Manufacturer Part Number:

1986165-3

OneIC Part Number:

35-1986165-3

Manufacturer:

te connectivity / amp

Description:

12 AWG SINGLE JACKET, SOLAR CABLE, 1500'

Customer Reference:

Datasheet:

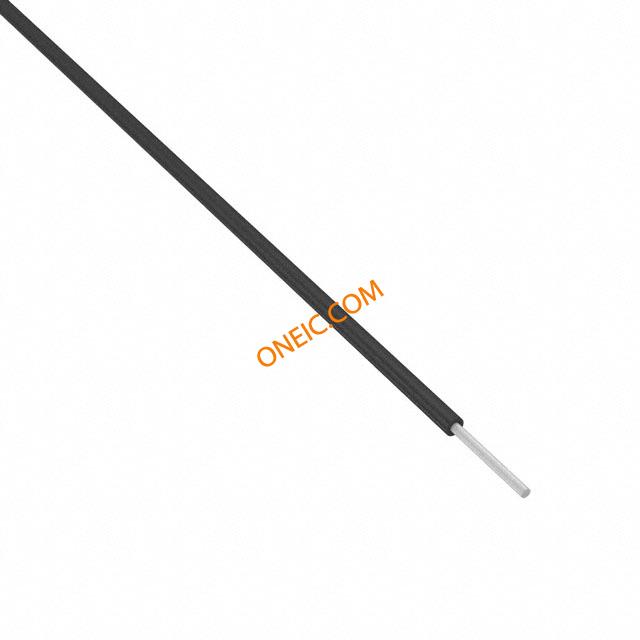

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Subcategory	Connector Photovoltaic
Packaging	Reel
Lead Time	38 Days
Ratings	UL Style 4703
Jacket (Insulation) Diameter	0.190" (4.83mm)
Wire Gauge	12 AWG
Cable Type	Solar Cable (Photovoltaic)
Conductor Material	Copper, Tinned
Jacket (Insulation) Material	Polyolefin (PO)
Length	1500' (457.20m)
Voltage	600V
Standard Package	1
Operating Temperature	-40°C ~ 125°C
Jacket Color	Black
Other Names	A97544-1500
Features	UV Resistant
rohs	Lead free / RoHS Compliant
Factory Pack Quantity	1500
Product Category	Hook-up Wire
Wire Type	Solar Cable
Voltage Rating	1.8 kVAC, 3 kVAC, 2.6 kVDC
Wire Gauge - AWG	12
Stranding	Solid
Maximum Temperature	+ 125 C
RoHS	RoHS Compliant
Series	1986165
Type	Photovoltaic
Insulation Material	Polyolefin, Cross Linked (XLPO), Electron Beamed
Standard Pack:	1,500
绝缘套管颜色	黑色
电线颜色	BK
绝缘直径 (in)	.19
导体数量	1
电线尺寸 (AWG)	12
导体直径 (in)	.095
封装方法	卷
太阳能接地解决方案	否
导体材料	镀锡铜, 镀锡铜
额定电压 (VAC)	600
电线尺寸 (mm²)	4
产品类型	电缆
线径 (in)	.19
总体外径 (in)	.095
电缆类型	太阳能

Documents & Media

RESOURCE TYPE	LINK
Datasheets	1986165 Drawing
Datasheets	SOLARLOK Interconnection Catalog
Datasheets	SOLARLOK Install Manual
Datasheets	SOLAR CABLE, UL-LISTED, 12 AWG
Datasheets	3D PDF
Datasheets	CONNECTIVITY_SYSTEMS_FOR_PV_INSTALLERS_3-1773458-6
Datasheets	SOLARLOK_CONNECTIVITY_SYSTEMS_FOR_PV_MANUFACTURERS_3-1773458-7
Datasheets	AMERICAS_VERSION_SOLARLOK_INSTALLATION_MANUAL_2-1773458-2
