Manufacturer Part Number:

2-382811-0

OneIC Part Number:

35-2-382811-0

Manufacturer:

te connectivity / amp

Description:

Conn Shunt F 2 POS 2.54mm ST Stick

Customer Reference:

Datasheet:

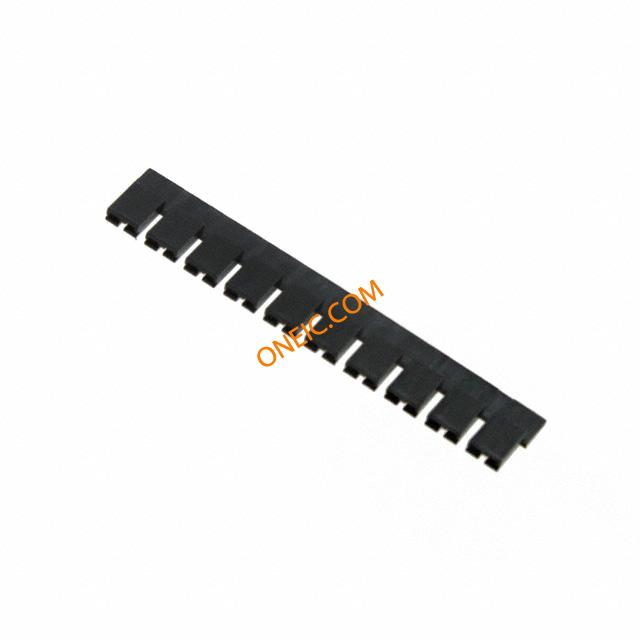

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	Shunt
Number of Contacts	2
Number of Rows	1
Housing Color	Black
Contact Plating	Gold Over Nickel
Packaging	Stick
Product Length	5.08
EU RoHS	Compliant
Insulation Resistance	1000
Product Depth	2.54
Gender	F
Body Orientation	Straight
Product Height	6.35
Housing Material	Polyester
Pitch	2.54
Maximum Current Rating	3/Contact
Contact Material	Phosphor Bronze
Subcategory	Connector Jumpers and Shunts
Lead Time	28 Days
Color	Black
Contact Finish	Gold
Pitch	0.100" (2.54mm)
Height	0.250" (6.35mm)
Number of Positions or Pins (Grid)	2 (1 x 2)
Standard Package	1,500
Contact Finish Thickness	30µin (0.76µm)
Other Names	23828110
rohs	Lead free / RoHS Compliant
Factory Pack Quantity	1500
Product Category	Headers & Wire Housings
Current Rating	3 A
Series	AMPMODU
Contact Gender	Socket (Female)
Mounting Style	Free Hanging
Number of Positions / Contacts	2
Tradename	AMPMODU
Product Type	Shunts
RoHS	RoHS Compliant
Operating Temp Range	-65C to 105C
Current Rating (Max)	3/Contact A
Insulation Resistance	1000 Mohm
Number of Contact Rows	1
Product Length (mm)	5.08 mm
Product Depth (mm)	2.54 mm
Product Height (mm)	6.35 mm
Pitch (mm)	2.54 mm
Accessory Type	:Shunt
For Use With	:PCB Connectors
No. of Positions	:2
Pitch Spacing	:2.54mm
Approval Category	:CSA Certified. UL recognised
Colour	:Black
Connector Type	:Shorting Link
External Length / Height	:6.35mm
Flammability Rating	:UL94V-0
Material	:Glass Filled Polyester
Weight (kg)	0.002
Tariff No.	85369010

Documents & Media

RESOURCE TYPE	LINK
Datasheets	382811
Datasheets	ECONOMY SHUNT ASSEMBLY
Datasheets	3D PDF
Datasheets	AMPMODU_INTERCONNECTION_SYSTEM_SECTION_6_7AND8
Datasheets	MD_2-382811-0_012620161645_dmtec
Datasheets	Low Profile, Economy, and Dual Beam Shunt Connectors 382811, 390088, and 382823
Datasheets	Low Profile, Economy, and Dual Beam Shunt Connectors 382811, 390088, and 382823
