Manufacturer Part Number:

2-640357-4

OneIC Part Number:

35-2-640357-4

Manufacturer:

te connectivity / amp

Description:

Conn DIP Socket SKT 14 POS 2.54mm Solder ST Thru-Hole Tube

Customer Reference:

Datasheet:

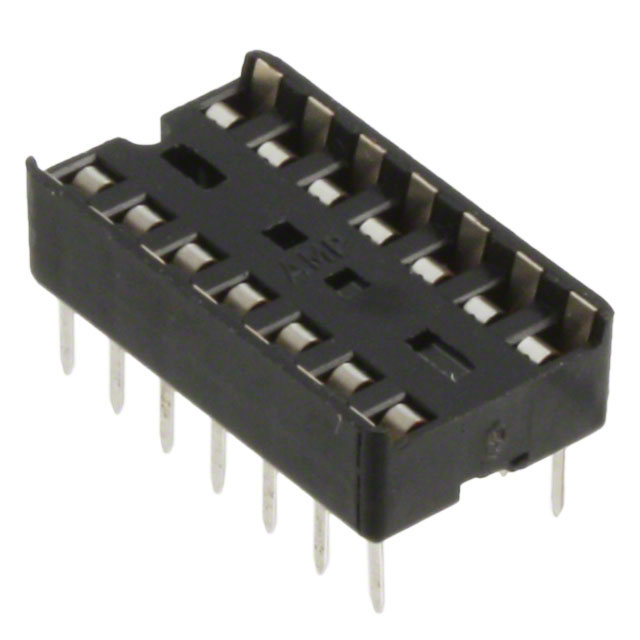

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	DIP Socket
Gender	SKT
Number of Contacts	14
Pitch	2.54 mm
Termination Method	Solder
Mounting	Through Hole
Body Orientation	Straight
Number of Rows	2
Standard Package	Rail / Tube
Features	Closed Frame
Mounting Type	Through Hole
Contact Finish	Gold
Number of Positions or Pins (Grid)	14 (2 x 7)
Contact Finish Thickness	15µin (0.38µm)
rohs	Contains lead / RoHS non-compliant
Factory Pack Quantity	30
Product	DIP / SIP Sockets
Product Category	IC & Component Sockets
Mounting Style	Through Hole
Housing Material	Thermoplastic
Flammability Rating	UL 94 V-0
Contact Plating	Gold
RoHS	No
Contact Material	Phosphor Bronze
Operating Temp Range	-55C to 125C
Rad Hardened	No
Contact Resistance Max	30 mohm
Insulation Resistance	10000 Mohm
Packaging	Tube
Number of Contact Rows	2
Insulation Material	Thermoplastic
Grid Size	Not Required
Product Length (mm)	17.65 mm
Product Depth (mm)	10.01 mm
Product Height (mm)	5.33 mm
Pitch (mm)	2.54 mm
Row Spacing (mm)	7.62 mm
间距	0.100" (2.54mm)
系列	Diplomate DL, AMP
针脚或引脚数（栅格）	14 (2 x 7)
特性	Closed Frame
触头镀层	Gold
装配类型	Through Hole
触头镀层厚度	15µin (0.38µm)
类型	DIP, 0.3" (7.62mm) Row Spacing

Documents & Media

RESOURCE TYPE	LINK
Datasheets	640357
