te connectivity / amp

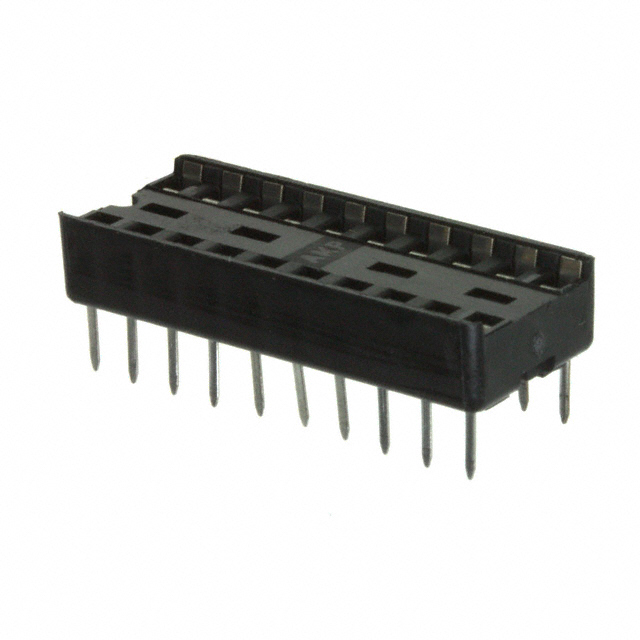

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | DIP Socket |
| Gender | SKT |
| Number of Contacts | 20 |
| Pitch | 2.54 mm |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Straight |
| Number of Rows | 2 |
| Standard Package | Rail / Tube |
| Features | Closed Frame |
| Mounting Type | Through Hole |
| Contact Finish | Tin |
| Number of Positions or Pins (Grid) | 20 (2 x 10) |
| rohs | Lead free / RoHS Compliant |
| Contact Material | Beryllium Copper |
| Contact Plating | Tin |
| Housing Material | Glass Fibre Reinforced Thermoplastic |
| Maximum Operating Temperature | +105°C |
| Pin Type | Stamped |
| Row Width | 7.87mm |
| Factory Pack Quantity | 21 |
| Product | DIP / SIP Sockets |
| Product Category | IC & Component Sockets |
| Operating Temperature Range | - 55 C to + 125 C |
| Packaging | Tube |
| Flammability Rating | UL 94 V-0 |
| Mounting Style | Through Hole |
| RoHS | RoHS Compliant |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Contact Resistance Max | 30 mohm |
| Insulation Resistance | 10000 Mohm |
| Number of Contact Rows | 2 |
| Insulation Material | Thermoplastic |
| Grid Size | Not Required |
| Product Length (mm) | 25.27 mm |
| Product Depth (mm) | 10.01 mm |
| Product Height (mm) | 5.33 mm |
| Pitch (mm) | 2.54 mm |
| Row Spacing (mm) | 7.62 mm |
| DELETED | Compliant |
| Connector Type | :DIP Socket |
| Series | :Standard |
| No. of Contacts | :20 |
| Pitch Spacing | :2.54mm |
| Row Pitch | :7.62mm |
| Contact Termination | :Through Hole Vertical |
| Pin Length | :0.12" |
| Weight (kg) | 0.002 |
| Tariff No. | 00000000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 641612 |
