te connectivity / amp

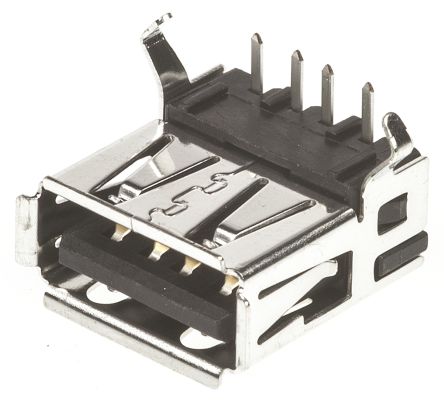

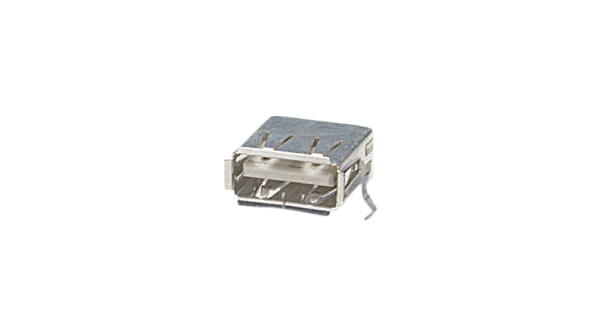

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | USB |
| Gender | RCP |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Standard Package | Rail / Tube |
| Packaging | Tube |
| Product Length | 14.63 |
| EU RoHS | Compliant |
| Product Depth | 14 |
| Product Height | 7.01 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Plating | Gold Over Palladium Nickel |
| Number of Contacts | 4 |
| Number of Terminals | 4 |
| Contact Material | Copper Alloy |
| PCB Thickness (mm (in)) | 1.57 [0.062] |
| Pick and Place Cover | Without |
| Mount Location | Top |
| Contact Termination Type | Through Hole |
| Number of Positions | 4 |
| Tail Length (mm (in)) | 2.85 [0.112] |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Housing Color | Black |
| Shell Plating | Bright Tin or Bright Tin over Nickel |
| Terminate To | Printed Circuit Board |
| Packaging Method | Tube |
| Locking Feature | Without |
| Locating Post(s) | Without |
| Contact Mating Area Plating Material | Gold or Gold Flash over Palladium Nickel |
| PCB Retention Method | Kinked Legs |
| Orientation | Right Angle |
| Series | A |
| Panel Ground | Without |
| Contact Mating Area Plating Thickness | 30 Microinches |
| RoHSELV Compliance History | Always was RoHS compliant |
| Size | Standard |
| Features | Board Lock |
| Mounting Type | Through Hole, Right Angle, Horizontal |
| Specifications | USB 2.0 |
| Connector Type | USB - A |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1920 |
| Current Rating | 1 A |
| Termination Style | Solder |
| Insulation Resistance | 1000 MOhms |
| Product | USB Type A Connectors |
| Product Category | USB Connectors |
| Operating Temperature Range | - 55 C to + 85 C |
| Standard | USB |
| Number of Positions / Contacts | 4 |
| Flammability Rating | UL 94 V-0 |
| Voltage Rating | 30 VAC |
| RoHS | RoHS Compliant |
| Mounting Angle | Right |
| Color | Black |
| Mounting Style | Through Hole |
| Product Length (mm) | 14.63 mm |
| Product Depth (mm) | 14 mm |
| Product Height (mm) | 7.01 mm |
| Size (mm) | 14.63 x 14 x 7.01 |
| No. of Contacts | :4 |
| Contact Termination | :Solder |
| Connector Mounting | :PCB |
| Body Plating | :Gold |
| Connector Mounting Orientation | :PCB |
| External Length / Height | :5.75mm |
| External Width | :13.13mm |
| Housing Type | :Black Thermoplastic |
| Length | :14mm |
| No. of Mating Cycles | :1500 |
| Voltage Rating V AC | :30V |
| Withstand Voltage | :750V |
| Weight (kg) | 0.02 |
| Tariff No. | 85366930 |
| AgencyApprovals | UL |
| Angle | Right |
| Brand/Series | USB,TypeA |
| Color,Housing | Black |
| ContactPlating | GoldoverPalladiumNickel |
| Current,Rating | 1A |
| Material,Contact | CopperAlloy |
| Material,Housing | Thermoplastic |
| Mode | Single |
| NumberofContacts | 4 |
| PrimaryType | USB |
| Termination | Thru-Hole |
| Voltage,Rating | 250VAC/VDC |
| Electrical mounting | THT |
| Mechanical mounting | on PCBs |
| Multiplicity | 1 |
| Spatial orientation | angled 90° |
| Connector type | USB A |
| Connector | socket |
| Gross weight | 2.05 g |
| Number of pins | 4 |
| Collective package [pcs] | 10 |
| spg | 10 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 292303-1 |
| Datasheets | RECEPTACLE ASSEMBLY RIGHT ANGLE, 4 POSITION, T/H & SMT USB, LEAD FREE VERSION |
| Datasheets | 3D PDF |
| Datasheets | Universal Serial Bus (USB) Connectors |
| Datasheets | MD_292303-1_05112017526_dmtec |
