te connectivity / amp

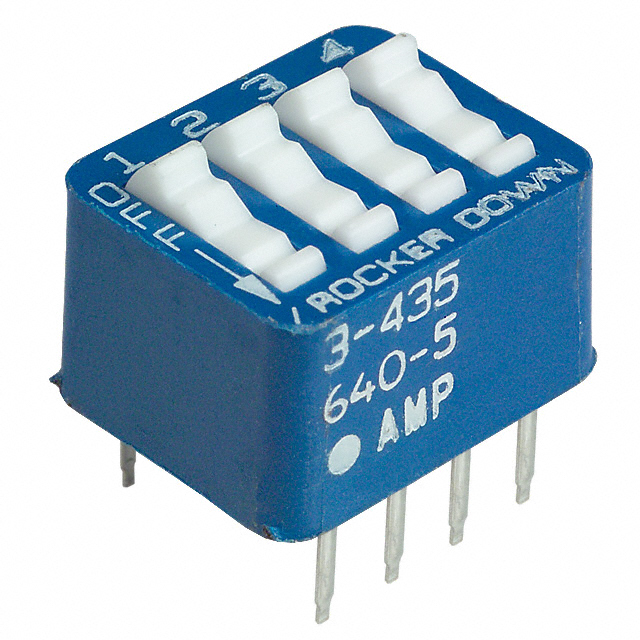

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Number of Positions | 4 |
| Mounting | Through Hole |
| Pole Throw Configuration | SPST |
| Switch Configuration | OFF ON |
| Actuator Style | Raised Rocker |
| Terminal Type | PC Pins |
| Operating Temperature | -55 to 105 °C |
| Standard Package | Rail / Tube |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Contact Material | Copper Alloy |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Auto-Insertable | No |
| Series | 7100 |
| Brand | Alcoswitch |
| Packaging Method | Loose Piece |
| Packaging Quantity | 25 |
| Centerline (mm in) | 2.54 [0.100] |
| Housing Material | Polyester |
| Configuration (Pole-Throw) | Single Pole - Single Throw |
| Number of Switches | 4 |
| PCB Mount Style | Thru Hole |
| Housing Color | Blue |
| Sealed | Yes |
| Contact Mating Area Plating Material | Gold (30) over Nickel (50) |
| Seal Type | Standard |
| Housing Flammability Rating | UL 94V-0 |
| Product Type | DIP Switch |
| RoHSELV Compliance History | Always was RoHS compliant |
| Termination (Solder) Post Length (mm (in)) | 3.56 [0.140] |
| Selling Alternatives | 3-435640-5 |
| Subcategory | Switch DIP |
| Packaging | Loose Piece |
| Lead Time | 70 Days |
| Washable | Yes |
| Actuator Type | Rocker |
| Mounting Type | Through Hole |
| Circuit | SPST |
| Contact Rating @ Voltage | 0.06A @ 5VDC |
| Orientation | Top Actuated |
| Actuator Level | Raised |
| rohs | Lead free / RoHS Compliant |
| Contact Configuration | SPST |
| Contact Current Rating | 0.1 A @ 5 V dc |
| Maximum Operating Temperature | +105°C |
| Mechanical Life | 2000Operations |
| Minimum Operating Temperature | -55°C |
| Package Style | DIP |
| Factory Pack Quantity | 25 |
| Product Category | DIP Switches / SIP Switches |
| Terminal Pitch | 2.54 mm |
| Switch Type | DIP |
| Contact Form | SPST |
| Termination Style | Through Hole |
| Contact Plating | Gold |
| Actuator | Rocker |
| RoHS | RoHS Compliant |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Mounting Style | Through Hole |
| Body Orientation | Straight |
| Seal | Strippable Transpar |
| Switch Function Configuration | OFF ON |
| Product Length (mm) | 12.19 mm |
| Product Depth (mm) | 9.65 mm |
| Product Height (mm) | 8.64 mm |
| Terminal Pitch (mm) | 2.54 mm |
| Total # of Positions | 4 |
| No. of Switch Positions | :4 |
| Pitch Spacing | :2.54mm |
| Contact Current DC Max | :1A |
| Actuation Type | :Top |
| Weight (kg) | 0 |
| Tariff No. | 85365007 |
| ActuatorType | Rocker |
| Type | DIP |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 5435640 Drawing |
| Datasheets | SWITCH ASSY, DIP, TYPE C, 7100 SERIES, SPST, STANDARD |
| Datasheets | 3D PDF |
| Datasheets | Dual In-Line Package (DIP) Programming Switches (7000 and 7100 Series) |
| Datasheets | MD_3-5435640-5_03202014020_dmtec |
| Datasheets | Dual In-Line Package (DIP) Programming Switches (7000 and 7100 Series) |
