Manufacturer Part Number:

3-582340-9

OneIC Part Number:

35-3-582340-9

Manufacturer:

te connectivity / amp

Description:

Conn Test Probe RCP 2 POS Solder RA Thru-Hole 1 Port

Customer Reference:

Datasheet:

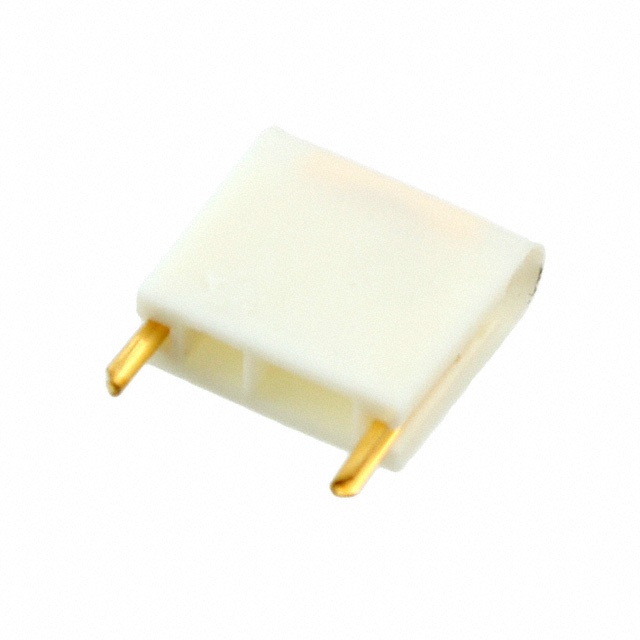

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	Test Probe
Gender	RCP
Number of Contacts	2
Mounting	Through Hole
Termination Method	Solder
Body Orientation	Right Angle
Standard Package	Bulk
RoHSELV Compliance	RoHS compliant, ELV compliant
Housing Material	Nylon
Lead Free Solder Processes	Wave solder capable to 240Â°C
Terminate To	Printed Circuit Board
Height Above PC Board (mm (in))	11.85 [0.467]
Number of Mounting Legs	2
Termination (Solder) Post Length (mm in)	3.30 [0.130]
ReceptacleLeg Material	Brass 6
Funnel Entry	Without
Housing Color	White
Contact Mating Area Plating Material	Gold
RoHSELV Compliance History	Always was RoHS compliant
Contact Material	Beryllium Copper
Subcategory	Connector Electronic Test Equipment
Lead Time	70 Days
Packaging	Bulk
Mounting Type	0.054" (1.37mm) Hole Diameter
Color	White
Material	Nylon
Terminal	0.130" (3.30mm) Beryllium Copper, Gold Plated
Other Names	35823409
rohs	Lead free / RoHS Compliant
Factory Pack Quantity	100
Product	Accessories
Product Category	IC & Component Sockets
Contact Plating	Gold
Operating Temperature Range	- 55 C to + 85 C
Socket / Case Type	Test Probe Receptacle
Mounting Style	PCB
RoHS	RoHS Compliant
系列	AMP
材料	Nylon
装配类型	0.054" (1.37mm) Hole Diameter
类型	Test Probe Receptacle
颜色	White
端子	0.130" (3.30mm) Beryllium Copper, Gold Plated
