te connectivity / amp

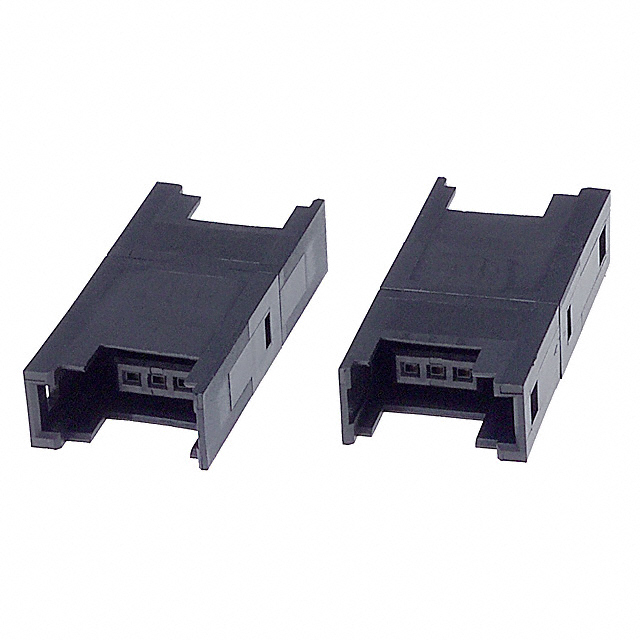

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Wire to Board |
| Pitch | 2 mm |
| Number of Rows | 2 |
| Number of Contacts | 3 |
| Gender | F |
| Contact Plating | Gold Over Nickel |
| Standard Package | Bulk |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| Flammability Rating | UL 94V-0 |
| Brand | Tyco Electronics |
| Junction Box Type | 2D |
| Housing Material | Thermoplastic Glass Reinforced |
| Product Type | Junction Box |
| RoHSELV Compliance History | Always was RoHS compliant |
| Number of Positions | 3 |
| Mount Type | Free Hanging |
| Mounting Type | Free Hanging (In-Line) |
| Convert To (Adapter End) | Receptacle, Female Sockets |
| Convert From (Adapter End) | Receptacle, Female Sockets |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 200 |
| Product Category | Power to the Board |
| RoHS | RoHS Compliant |
| 间距 | 0.079" (2.00mm) |
| 排数 | 1 |
| 位置数 | 3 |
| 转换至（适配器端） | Receptacle, Female Sockets |
| 装配类型 | Free Hanging (In-Line) |
| 系列 | RITS, AMP |
| 转换自（适配器端） | Receptacle, Female Sockets |
| 连接器类型 | 连接器组件 |
| 适用于 | 公端 |
| 端子类型 | 插座 |
| 封装方法 | 袋 |
| 屏蔽 | 否 |
| 连接器和端子端接到 | 电线和电缆 |
| 行数 | 1 |
| 长度 | 13.8 mm [ .543 in ] |
| 带罩 | 否 |
| 接合对准类型 | 极化 |
| Contact Current Rating (Max) (A) | 3 |
| UL 易燃性等级 | UL 94V-0 |
| 端子定位力 | 不带 |
| Connector System | 线到线 |
| 接合对准 | 带有 |
| 多端子类型 | 不带 |
| 面板安装 | 否 |
| 高度 | 30 mm [ 1.181 in ] |
| 壳体颜色 | 黑色 |
| 接合固定 | 带有 |
| 端子布局 | 同轴 |
| 工组温度范围 | -30 – 75 °C [ -22 – 167 °F ] |
| 产品类型 | 连接器 |
| Sealable | 否 |
| PCB 安装固定 | 不带 |
| 端子电镀材料 | 镍打底镀金 |
| PCB 安装对准 | 不带 |
| 预装 | 是 |
| 宽度 | 16 mm [ .627 in ] |
| 外壳材料 | 热塑性 GF |
| Centerline (Pitch) (in) | .079 |
| 接合固定类型 | 锁闩 |
| 分流器/短路棒 | 不带 |
| 选择性装载 | 否 |
| 组件集成特性 | 不带 |
| 电路识别特性 | 不带 |
| 连接器种类 | 母端 |
| 封装数量 | 200 |
| 无卤素 | 是 |
| 工作电压 (VDC) | 32 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 1473668 |
| Datasheets | JUNCTION BOX (2D) FOR E-CON |
| Datasheets | 3D PDF |
| Datasheets | Remote Input Output Terminal System (RITS) Connectors |
| Datasheets | RITS CONNECTOR |
| Datasheets | RITS CONNECTOR |
| Datasheets | RITS Connector Interconnection System/e-CON Connector |
| Datasheets | RITS Connector Interconnection System/e-CON Connector |
