te connectivity / amp

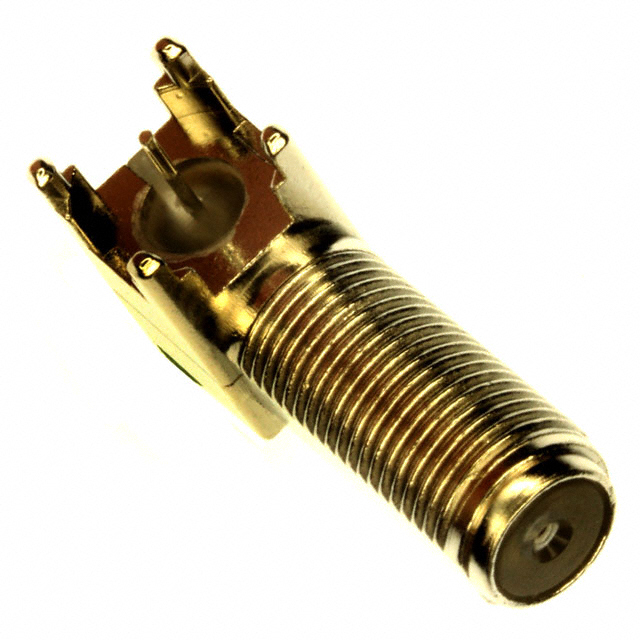

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Type F |
| Gender | RCP |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin Over Copper |
| Family | 1634540 |
| Terminate To | PCB |
| Standard Package | Bulk |
| Center Contact Plating | Tin over Copper |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Body Plating | Nickel Over Copper |
| Dielectric Material | Polyethylene |
| Brand | Tyco Electronics |
| Connector Type | F Series |
| Packaging Quantity | 1 |
| Center Contact Material | Phosphor Bronze |
| Sealed | No |
| Mount | PCB Thru Mount |
| Product Type | Connector |
| RoHSELV Compliance History | Always was RoHS compliant |
| PCB Mount Angle | Right Angle |
| Termination (Solder) Post Length (mm (in)) | 1.70 [0.067] |
| Connector Style | F Type |
| Body Finish | Nickel |
| Shield Termination | Solder |
| Frequency - Max | 1GHz |
| Impedance | 75 Ohm |
| Body Material | Zinc Alloy |
| Fastening Type | Threaded |
| Mounting Type | Through Hole, Right Angle |
| Packaging | Bulk |
| Contact Termination | Solder |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 100 |
| Product | PCB Receptacles |
| Product Category | RF Connectors / Coaxial Connectors |
| Orientation | Right Angle |
| Operating Temperature Range | - 55 C to + 85 C |
| Termination Style | Solder |
| Maximum Frequency | 4 GHz |
| RF Series | F |
| Body Style | Right Angle |
| RoHS | RoHS Compliant By Exemption |
| Rad Hardened | No |
| Termination | Solder |
| Mounting Style | Through Hole |
| Insulation Material | Polyethylene |
| Product Length (mm) | 9.5 mm |
| Product Depth (mm) | 9.5 mm |
| Product Height (mm) | 13.5 mm |
| Coaxial Termination | :Crimp |
| Coaxial Cable Types | :- |
| Frequency Max | :2GHz |
| Connector Mounting | :PCB |
| Coaxial Type | :75R |
| Connector Mounting Orientation | :PC Board |
| Length | :28mm |
| No. of Mating Cycles | :50 |
| Operating Frequency Max | :2GHz |
| Operating Temperature Max | :+85°C |
| Operating Temperature Min | :-55°C |
| Plug Body Material | :Zinc Alloy |
| Series | :- |
| Weight (kg) | 0.0018 |
| Tariff No. | 85369010 |
| Angle | RightAngle |
| ContactPlating | TinoverCopper |
| Finish,Housing | NickeloverCopper |
| Material,Dielectric | Polyethylene |
| MountingType | PCBMount |
| Polarity | Normal |
| PrimaryType | F |
| Size | Standard |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 1634540 |
| Datasheets | F SERIES CONNECTOR ELBOW JACK PCB |
| Datasheets | 3D PDF |
| Datasheets | 1-1773725-8_RF_COAX_QRG |
| Datasheets | MD_5-1634540-1_12312012527 |
