te connectivity / amp

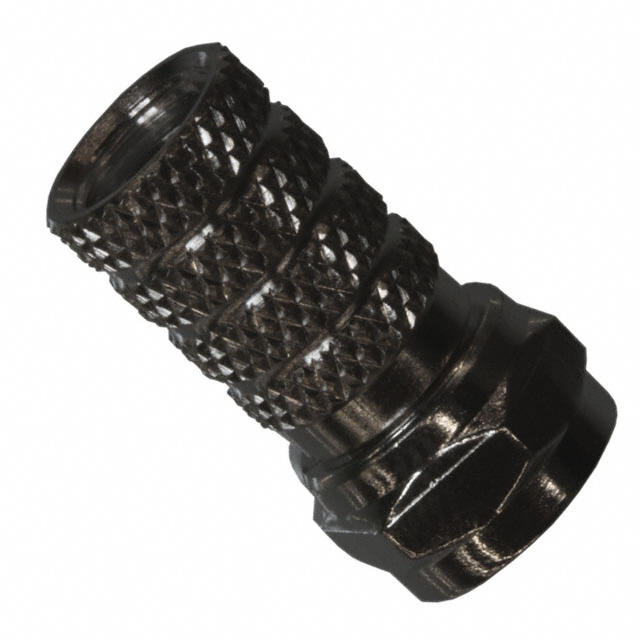

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Type F |
| Gender | PL |
| Impedance | 75 Ohm |
| Operating Frequency | 0 to 2 GHz |
| Mounting | Cable Mount |
| Body Orientation | Straight |
| Family | 1814822 |
| Terminate To | CT 100 Cable |
| Standard Package | Bulk |
| Connector Style | F Type |
| Body Finish | Nickel |
| Shield Termination | Twist On |
| Frequency - Max | 2GHz |
| Cable Group | CT100 |
| Connector Type | Plug, Male Pin |
| Body Material | Brass |
| Fastening Type | Threaded |
| Mounting Type | Free Hanging (In-Line) |
| Packaging | Bulk |
| Other Names | A97606 |
| rohs | Not applicable / RoHS Compliant |
| Product | Connectors |
| Product Category | RF Connectors / Coaxial Connectors |
| Orientation | Straight |
| Operating Temperature Range | - 55 C to + 85 C |
| Cable Type | RG-59B, RG-62A, RG-140, RG-210, Belden 9291, KX25, KX52, KX53, KX6A, URM90 |
| Termination Style | Twist On |
| Maximum Frequency | 4 GHz |
| RF Series | F |
| Body Style | Straight |
| RoHS | RoHS Compliant By Exemption |
| Operating Temp Range | -55C to 85C |
| Rad Hardened | No |
| Mounting Style | Cable |
| Body Plating | Nickel |
| Product Length (mm) | 21 mm |
| Product Depth (mm) | 11 mm |
| Coaxial Termination | :Twist On |
| Coaxial Cable Types | :CT100 |
| Contact Material | :Phosphor Bronze |
| Contact Plating | :Tin |
| Frequency Max | :2GHz |
| Connector Mounting | :Cable |
| Coaxial Type | :CT100 |
| Connector Mounting Orientation | :Cable |
| No. of Mating Cycles | :50 |
| Operating Frequency Max | :2GHz |
| Operating Temperature Max | :+85°C |
| Operating Temperature Min | :-55°C |
| Plug Body Material | :Zinc Alloy |
| Series | :- |
| Termination Method | :Twist-on |
| Weight (kg) | 0.006 |
| Tariff No. | 85369010 |
| Angle | Straight |
| CableType | RG/UCT100 |
| Finish,Housing | Nickel |
| MountingType | CableMount |
| Polarity | Normal |
| PrimaryType | F |
| Size | Standard |
| Termination | Twist-On |
| Electrical mounting | twist-on |
| Mechanical mounting | for cable |
| Multiplicity | 1 |
| Cable type | CT100 |
| Connector type | male |
| Spatial orientation | straight |
| Connector | plug |
| Wave impedance | 75Ω |
| Gross weight | 9.06 g |
| Collective package [pcs] | 1 |
| spg | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 1814822 |
| Datasheets | F TYPE STR PLG T/O |
