Manufacturer Part Number:

530341-7

OneIC Part Number:

35-530341-7

Manufacturer:

te connectivity / amp

Description:

Connector Accessories External Key Kit Stainless Steel/Brass Nickel Finish Loose Piece

Customer Reference:

Datasheet:

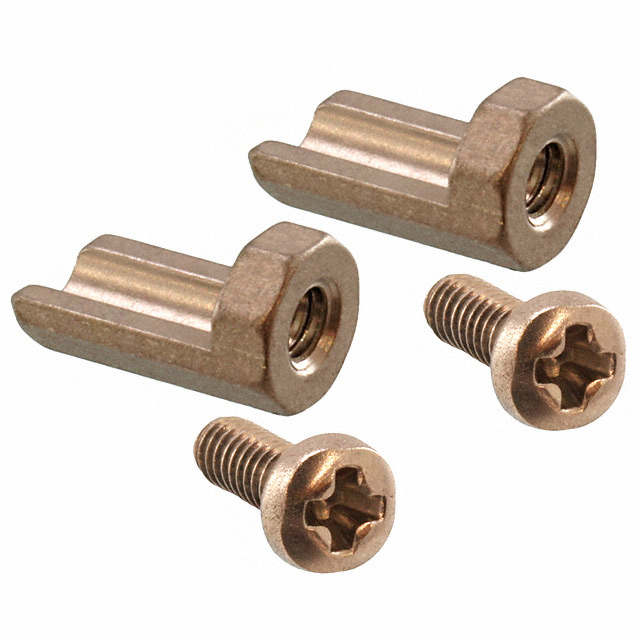

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	Kit
Family	530341
Standard Package	Bulk
Comment	Pin header kit includes two pieces of 530341-1 and two #2-56 cross recessed rou
Rivet Plating	Nickel
Lead Free Solder Processes	Not relevant for lead free process
Key Material	Passivated Stainless Steel
GovernmentIndustry Qualification	No
Packaging Method	Loose Piece
Keying Hardware Type	External Key Kit
RoHSELV Compliance	RoHS compliant, ELV compliant
Rivet Material	Brass
For Use With	2-Row Pin Headers, 3-Row Pin Headers
Product Type	Keying Hardware
RoHSELV Compliance History	Always was RoHS compliant
Accessory Type	External Key
For Use With/Related Products	Box Series
rohs	Lead free / RoHS Compliant
Housing Material	Nickel
Product Category	Headers & Wire Housings
Contact Plating	Nickel
RoHS	RoHS Compliant
Packaging	Bulk
Product Length (mm)	7.75 mm
Product Depth (mm)	4.42 mm
Thread Size - Metric	:-
Thread Size - Imperial	:2-56
Weight (kg)	0.02
Tariff No.	85366930

Documents & Media

RESOURCE TYPE	LINK
Datasheets	530341 Drawing
Datasheets	EXTERNAL KEY,BOX CONNECTOR
Datasheets	3D PDF
Datasheets	Box Header Assemblies and Receptacle Connectors with Contacts on 190 mm [075 in] and 254 mm [100 in] Centerlines
Datasheets	MD_530341-7_06292013456_dmtec
Datasheets	Clinching Tool 91117-3
