te connectivity / amp

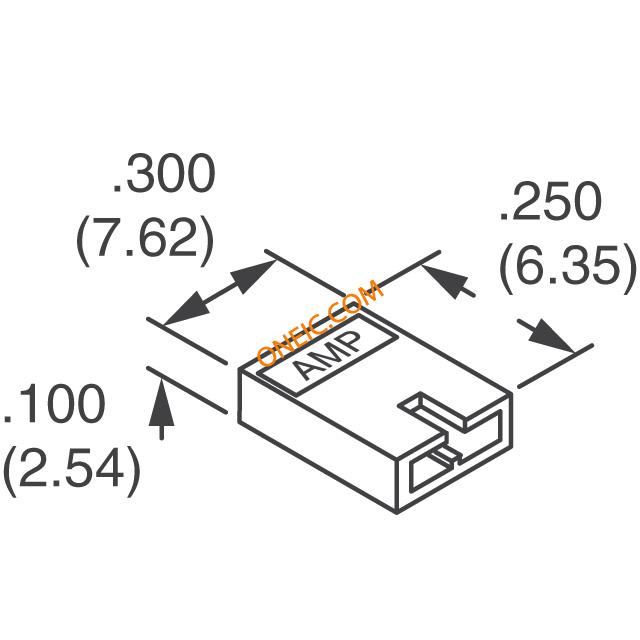

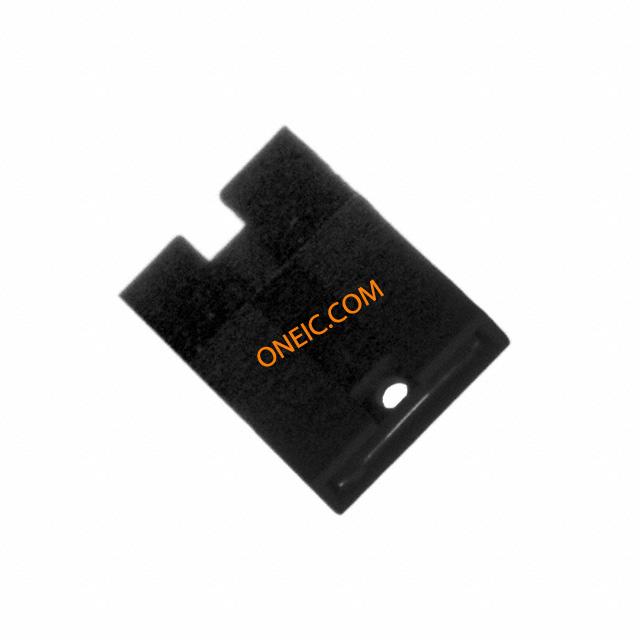

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Shunt |
| Pitch | 5.08 mm |
| Number of Contacts | 2 |
| Number of Rows | 1 |
| Housing Color | Black |
| Contact Plating | Tin Over Nickel |
| Standard Package | Bulk |
| Selling Alternatives | 531230-1 |
| Subcategory | Connector Jumpers and Shunts |
| Packaging | Stick |
| Lead Time | 28 Days |
| Color | Black |
| Contact Finish | Tin |
| Height | 0.250" (6.35mm) |
| Gender | Female Sockets |
| Number of Positions or Pins (Grid) | 2 (1 x 2) |
| Contact Finish Thickness | 100µin (2.54µm) |
| rohs | Lead free / RoHS Compliant |
| CAD Drawing | 3D CAD Model |
| Colour | Black |
| Contact Material | Beryllium Copper |
| Depth | 6.35mm |
| Length | 7.62mm |
| Orientation | Straight |
| Width | 2.54mm |
| Factory Pack Quantity | 2000 |
| Product Category | Headers & Wire Housings |
| Current Rating | 3 A |
| Housing Material | Polyester |
| Series | AMPMODU MOD IV |
| Number of Positions / Contacts | 2 |
| Tradename | AMPMODU |
| Product Type | Shunts |
| RoHS | RoHS Compliant |
| Operating Temp Range | -40C to 85C |
| Current Rating (Max) | 3/Contact A |
| Insulation Resistance | 1000 Mohm |
| Body Orientation | Straight |
| Number of Contact Rows | 1 |
| Product Length (mm) | 7.62 mm |
| Product Depth (mm) | 6.35 mm |
| Product Height (mm) | 2.54 mm |
| Pitch (mm) | 5.08 mm |
| AgencyApprovals | CSA,UL |
| Angle | Straight |
| Brand/Series | PostShunt |
| Finish,HousingTest | Tin-LeadoverNickel |
| FlammabilityRating | UL94V-0 |
| Length,Overall | 3.453" |
| Material,Housing | GlassFilledPolyester |
| NumberofContacts | 2 |
| PinSpacing | 0.2" |
| PrimaryType | InterconnectSystem |
| StrainRelief | LowProfile |
| 触点数目 | 2 |
| 连接器类型 | 母座 |
| 颜色 | 黑色 |
| 触点材料 | 铍铜 |
| 类型 | 开放式顶部 |
| 宽度 | 2.54mm |
| CAD 绘图 | 3D CAD 模型 |
| 行数 | 1 |
| 深度 | 6.35mm |
| 触点电镀 | 锡镀镍 |
| 长度 | 7.62mm |
| 节距 | 5.08mm |
| 方向 | 直 |
| 系列 | AMPMODU |
| 封装方法 | 盒 |
| 外形 | 低 |
| UL 等级 | 获得认可 |
| 绝缘电阻 (MΩ) | 1000 |
| 手柄 | 不带 |
| シャントのタイプ | 标准外壳 |
| 分流方式 | 开顶式 |
| 高度 | 6.35 mm [ .25 in ] |
| 封装数量 | 2000 |
| 端子接触部电镀材料 | 锡 |
| 壳体颜色 | 黑色 |
| 端子接触部电镀厚度 | 2.54 µm [ 100 µin ] |
| 端子基材 | 铍铜 |
| 外壳材料 | 聚酯 - GF |
| 工组温度范围 (°C) | -40 – 85 |
| Centerline (Pitch) | 5.08 mm [ .2 in ] |
| 产品类型 | 分流 |
| Contact Current Rating (Max) (A) | 3 |
| Number of Positions | 2 |
| UL 易燃性等级 | UL 94V-0 |
| 获得 CSA 认证 | 是 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 531230 |
| Datasheets | LOW PROFILE SHUNT CONNECTOR 508 [200] CL |
| Datasheets | 3D PDF |
| Datasheets | Low Profile, Economy, Dual Beam,and Multiposition Shunt Connectors |
| Datasheets | Low Profile, Economy, Dual Beam,and Multiposition Shunt Connectors |
| Datasheets | MD_531230-4_03302017233_dmtec |
| Datasheets | AMP SHUNT CONNECTOR REPORT |
