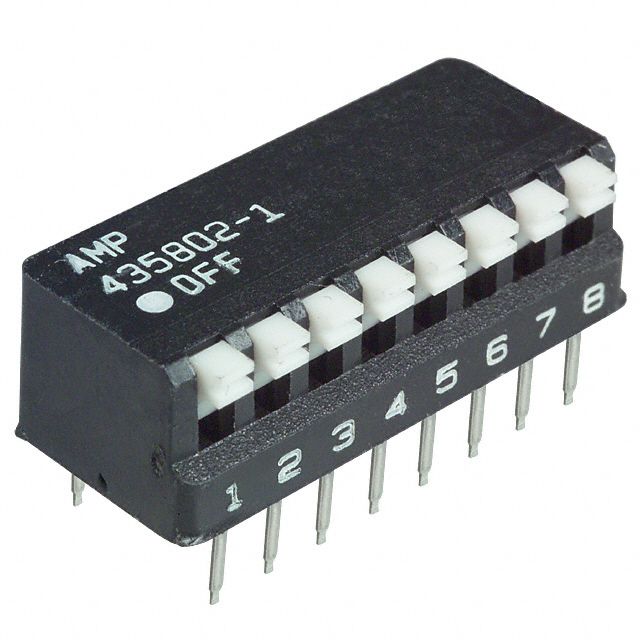

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Number of Positions | 8 |
| Mounting | Through Hole |
| Pole Throw Configuration | SPST |
| Switch Configuration | OFF ON |
| Actuator Style | Piano |
| Terminal Type | PC Pins |
| Operating Temperature | -55 to 105 °C |
| Standard Package | Rail / Tube |
| Comment | All switches are bottom sealed. |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Auto-Insertable | No |
| Series | 7000 |
| Brand | Alcoswitch |
| Contact Material | Copper Alloy |
| Number of Switches | 8 |
| Low Profile | Yes |
| Packaging Quantity | 14 |
| Centerline (mm in) | 2.54 [0.100] |
| Housing Material | Polyester GF |
| Configuration (Pole-Throw) | Single Pole - Single Throw |
| PCB Mount Style | Thru Hole |
| Housing Color | Black |
| Sealed | No |
| Contact Mating Area Plating Material | Gold (30) over Nickel (50) |
| Housing Flammability Rating | UL 94V-0 |
| Product Type | DIP Switch |
| RoHSELV Compliance History | Always was RoHS compliant |
| Termination (Solder) Post Length (mm (in)) | 3.56 [0.140] |
| Washable | No |
| Actuator Type | Piano |
| Mounting Type | Through Hole |
| Circuit | SPST |
| Contact Rating @ Voltage | 0.1A @ 5VDC |
| Orientation | Side Actuated |
| Actuator Level | Raised |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 14 |
| Product Category | DIP Switches / SIP Switches |
| Terminal Pitch | 2.54 mm |
| Switch Type | DIP |
| Contact Form | SPST |
| Termination Style | Through Hole |
| Packaging | Tube |
| Contact Plating | Gold |
| Actuator | Piano |
| RoHS | RoHS Compliant |
| ActuatorType | Rocker,Side |
| ContactForm | SPDTx8 |
| Current,Rating | 100mA |
| MountingHoleSize | 0.035In. |
| MountingType | PCB |
| Operation | OnOff |
| Termination | PCBPins |
| Type | DIP |
| Voltage,Rating | 5VDC |
| SubCategory | DIP Switch |
| MainCategory | Switches |
| 系列 | 7000, Alcoswitch |
| 位置数 | 8 |
| 致动器水平 | Raised |
| 电路 | SPST |
| 不同电压时的触头额定电流 | 0.1A @ 5VDC |
| 致动器类型 | Piano |
| 安装类型 | 通孔 |
| 端子接触部电镀厚度 (µin) | 30 |
| 高度 | 7.36 mm [ .29 in ] |
| 封装方法 | 管 |
| 端子基材 | 铜合金 |
| 长度 | 22.35 mm [ .88 in ] |
| UL 易燃性等级 | UL 94V-0 |
| 工作温度范围 (°C) | -55 – 105 |
| 中心线 | 2.54 mm [ .1 in ] |
| Solder Tail Contact Plating | Tin |
| 额定电压 (VDC) | 50 |
| 端子接触部电镀材料 | 金 |
| 壳体颜色 | 黑色 |
| 产品类型 | 开关 |
| 端子电流额定值 (A) | 1.5 |
| 密封 | 否 |
| 配置（极掷） | 单刀单掷 |
| 外壳材料 | 聚酯 GF |
| 端接柱体长度 | 3.56 mm [ .14 in ] |
| 安装角度 | 垂直 |
| 针数 | 8 |
| 封装数量 | 14 |
| 注释 | 所有开关末端密封。 |
| 开关类型 | DIP |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 5435802 Series |
| Datasheets | SWITCH ASSY, DIP, TYPE C, 7000 SERIES, SPST, SIDE ACTUATED |
| Datasheets | 3D PDF |
| Datasheets | Dual In-Line Package (DIP) Programming Switches (7000 and 7100 Series) |
| Datasheets | Dual In-Line Package (DIP) Programming Switches (7000 and 7100 Series) |
