te connectivity / amp

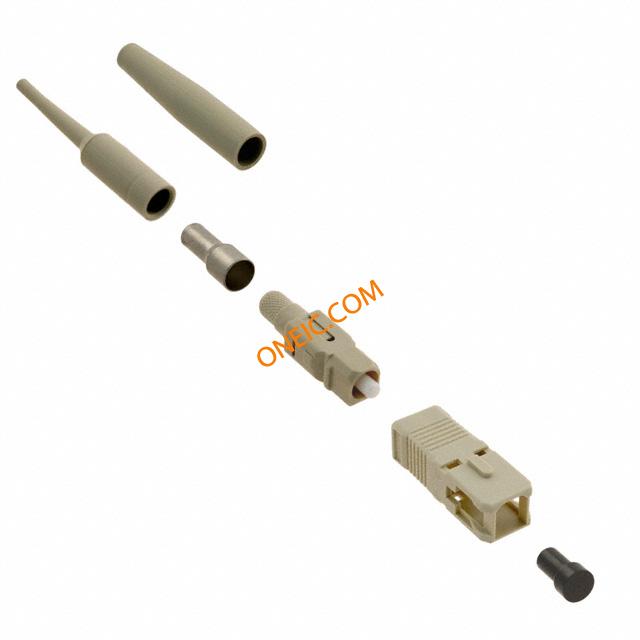

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | SC |
| Gender | PL |
| Mounting | Cable Mount |
| Body Orientation | Straight |
| Mode | Multimode |
| Ferrule Material | Ceramic/Polybutylene Terephthalate |
| Housing Material | Polybutylene Terephthalate |
| Insertion Loss | <0.2 dB |
| Standard Package | Bulk |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Strain Relief Color | Beige |
| Lead Free Solder Processes | Not relevant for lead free process |
| Product Type | Connector |
| Ferrule Hole Size (µm) | 125 |
| RoHSELV Compliance History | Always was RoHS compliant |
| Brand | AMP |
| Cable Type | Buffered Fiber - 900µm, Jacketed Cable - 3.0mm |
| Epoxyless | No |
| Strain Relief Material | Thermoplastic Elastomer |
| Protective Cover | With |
| Housing Color | Beige |
| Operating Temperature (°C) | -40 â +85 |
| Connector Style | One-Piece |
| Strain Relief | With |
| Pre-Polished | No |
| Fiber Optic Connector Type | Simplex |
| Cable Diameter | 3.0mm |
| Fiber Cladding Diameter | 125µm |
| Connector Type | Plug |
| Body Material | Polyethersulfone (PES), Glass Filled |
| Fastening Type | Snap-In |
| Attenuation - Typ | 0.2dB |
| Features | Dust Cap, Strain Relief |
| Mounting Type | Free Hanging (In-Line) |
| Simplex/Duplex | Simplex |
| Boot Color | Beige |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 10 |
| Product | SC Connectors |
| Product Category | Fiber Optic Connectors |
| Operating Temperature Range | - 40 C to + 85 C |
| Color | Beige |
| Port Type | Simplex |
| RoHS | RoHS Compliant |
| Angle | Straight |
| FlammabilityRating | UL94V-0 |
| Material,Housing | Plastic |
| PrimaryType | FiberOptic |
| SpecialFeatures | Simplex |
| Termination | Epoxy |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 5503948 Drawing |
