te connectivity / amp

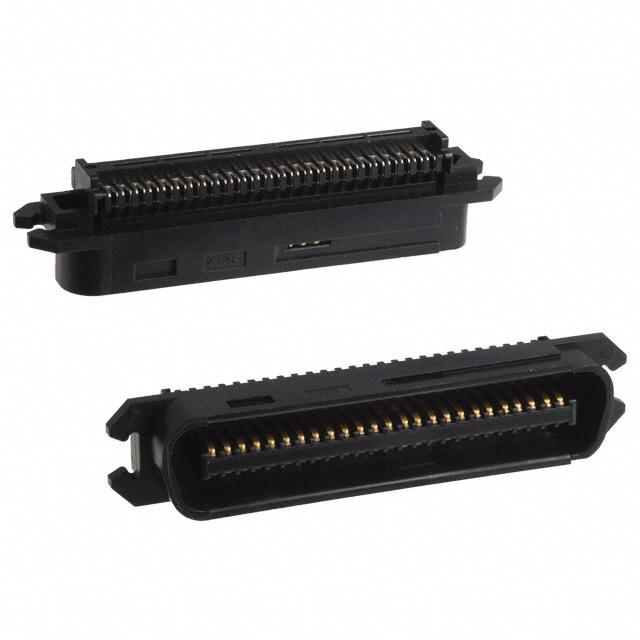

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | IEEE 488 |
| Gender | PL |
| Pitch | 2.16 mm |
| Mounting | Cable Mount |
| Body Orientation | Right Angle |
| Standard Package | Trays |
| Connector Style | PB |
| Housing Color Dot Designation | Blue |
| Mating Connector Lock Type | Bail Lock |
| Number of Positions | 50 |
| Profile | Standard |
| Lead Free Solder Processes | Not relevant for lead free process |
| Product Category | Connectors |
| Insulation Diameter (mm (in)) | 1.14 [.045] Max. |
| Product Type | Connector |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Shielded | No |
| Packaging Method | Tray |
| Slot Type Letter Code | B |
| Contact Mating Area Plating Material | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| WireCable Type | 7 Strand, Solid |
| Wire Range (Solid) (mm (AWG)) | 0.51-0.40 [24-26] |
| Flange Thickness | Thin |
| Panel Attachment | Without |
| Wire Range (Stranded) (mm² AWG) | 0.20² [24] |
| RoHSELV Compliance History | Always was RoHS compliant |
| Mating Connector Lock | With |
| Subcategory | Connector Interface |
| Packaging | Tray |
| Lead Time | 28 Days |
| Features | Bail Lock |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Termination | IDC |
| Contact Finish Thickness | 30µin (0.76µm) |
| rohs | Lead free / RoHS Compliant |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Palladium Nickel |
| Housing Material | PPO |
| Number of Contacts | 50 |
| Termination Method | IDT |
| Factory Pack Quantity | 1 |
| Product | Micro Ribbon Connectors |
| Color | Black |
| Termination Style | Wire |
| Mounting Angle | Straight |
| Number of Positions / Contacts | 50 |
| Mounting Style | Cable |
| RoHS | RoHS Compliant |
| Number of Ports | 1 Port |
| Product Depth (mm) | 15.24 mm |
| Product Height (mm) | 17.4 mm |
| Number of Terminals | 50 |
| Pitch (mm) | 2.16 mm |
| Series | :Champ |
| No. of Contacts | :50 |
| Contact Termination | :IDC / IDT |
| Connector Mounting | :Cable |
| Weight (kg) | 0.009 |
| Tariff No. | 85369010 |
| Angle | Straight |
| Brand/Series | CHAMPIDC |
| ContactPlating | GoldFlashoverPalladiumNickeloverNickel,Gold(30)overNickel(50) |
| Diameter,Insulation | 0.045" |
| Length,Overall | 3.056" |
| Material,Contact | CopperAlloy |
| Material,Housing | Polyphenylene |
| NumberofContacts | 50 |
| NumberofRows | 2 |
| PinSpacing | 0.085" |
| PrimaryType | Industrial |
| SpecialFeatures | BailLock |
| Wire,AWG | 24-26AWG(Solid),24AWG(Stranded) |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 552032 |
| Datasheets | PLUG ASSEMBLY, 50 POSITION, B-SLOT, BAIL LOCK, CHAMP-LOK |
| Datasheets | 3D PDF |
| Datasheets | CHAMP Cable Connectors (Standard And Shielded) |
| Datasheets | Connector, CHAMP |
| Datasheets | Connector, CHAMP |
| Datasheets | Connector, CHAMP |
| Datasheets | MD_552032-1_03102017128_dmtec |
| Datasheets | CHAMP Cable-to-Cable and Cable-to-Panel Connectors |
| Datasheets | CHAMP - IDC REPORT |
| Datasheets | CHAMP RIBBON CONNECTOR REPORT |
