te connectivity / amp

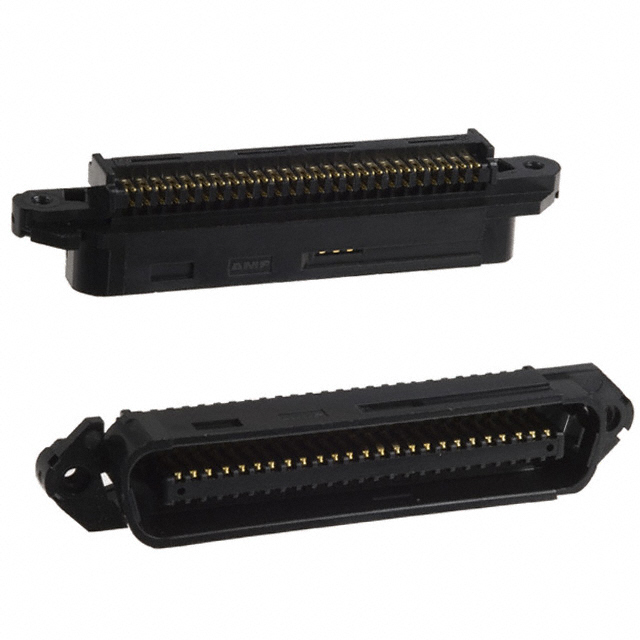

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | IEEE 488 |
| Gender | PL |
| Pitch | 2.16 mm |
| Mounting | Cable Mount |
| Body Orientation | Right Angle |
| Standard Package | Trays |
| Insulation Diameter (mm in) | 1.14 [.045] Max. |
| Connector Style | PS |
| Housing Color Dot Designation | Yellow |
| Mating Connector Lock Type | Screwlocks |
| Number of Positions | 50 |
| Profile | Standard |
| Lead Free Solder Processes | Not relevant for lead free process |
| Product Category | Connectors |
| Wire Range (Stranded) (mm² (AWG)) | 0.09² [28], 0.10² [27], 0.14² [26] |
| Product Type | Connector |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Shielded | No |
| Packaging Method | Tray |
| Packaging Quantity | 500 |
| Slot Type Letter Code | E |
| Contact Mating Area Plating Material | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| WireCable Type | 7 Strand |
| Flange Thickness | Thick |
| Panel Attachment | Without |
| RoHSELV Compliance History | Always was RoHS compliant |
| Mating Connector Lock | With |
| Subcategory | Connector Interface |
| Packaging | Tray |
| Lead Time | 98 Days |
| Flange Feature | Insert, Threaded (4-40) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Termination | IDC |
| Contact Finish Thickness | 30µin (0.76µm) |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Product | Micro Ribbon Connectors |
| Features | IDC connectors, yellow dot designation |
| Color | Black |
| Termination Style | Wire |
| Mounting Angle | Straight |
| Housing Material | Polyphenylene |
| Number of Positions / Contacts | 50 |
| Mounting Style | Cable |
| Contact Plating | Gold |
| RoHS | RoHS Compliant |
| Contact Material | Copper Alloy |
| Number of Ports | 1 Port |
| Number of Contacts | 50 POS |
| Product Length (mm) | 83.31 mm |
| Product Depth (mm) | 15.24 mm |
| Product Height (mm) | 17.39 mm |
| Number of Terminals | 50 |
| Termination Method | IDT |
| Pitch (mm) | 2.16 mm |
| 连接器类型 | Plug |
| 排数 | 2 |
| 位置数 | 50 |
| 端接 | IDC |
| 连接器样式 | Center Strip Contacts |
| 触头镀层 | Gold |
| 装配类型 | Free Hanging (In-Line) |
| 触头镀层厚度 | 30µin (0.76µm) |
| 系列 | CHAMP .085, AMP |
| 触点数目 | 50 |
| 主体向性 | 直 |
| 最高工作温度 | +75°C |
| 安装类型 | 电缆安装 |
| 最低工作温度 | -40°C |
| 端接方法 | IDC |
| 外壳材料 | Polypheylene |
| 触点材料 | 铜合金 |
| 行数 | 2 |
| 节距 | 2.16mm |
| 触点电镀 | 金 |
| 额定电压 | 250 V |
| 端子接触部电镀厚度 (µin) | 30 |
| Centerline (Pitch) | 2.16 mm [ .085 in ] |
| 封装方法 | 包装, 盒和托盘 |
| 屏蔽 | 否 |
| 端子基材 | 铜合金 |
| 壳体色点名称 | 黄色 |
| 产品类别 | 连接器 |
| 外形 | 标准 |
| 颜色 | 黑色 |
| Insulation Diameter (Max) | 1.14 mm [ .045 in ] |
| 接合连接器锁扣类型 | 螺钉锁, 螺钉锁 |
| 端子接触部电镀材料 | 金, 钯镍合金镀金 |
| 产品类型 | 连接器 |
| 面板安装固定 | 不带 |
| 法兰厚度 | 厚 |
| 插槽类型字母代码 | E |
| 线缆类型 | 7 股 |
| 连接器分类 | IDC |
| 连接器种类 | 插头 |
| 封装数量 | 100 |
| Stranded Wire Range (mm²) | .09, .1, .14 |
| 线径范围 (AWG) | 26, 28 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 552390 |
| Datasheets | PLUG ASSEMBLY, 50 POSITION E-SLOT, W/ 4-40 HOLES CHAMP-LOK |
| Datasheets | 3D PDF |
| Datasheets | CHAMP Cable Connectors (Standard And Shielded) |
| Datasheets | Connector, CHAMP |
| Datasheets | Connector, CHAMP |
| Datasheets | Connector, CHAMP |
| Datasheets | MD_552390-1_03112017156_dmtec |
| Datasheets | CHAMP Cable-to-Cable and Cable-to-Panel Connectors |
| Datasheets | CHAMP - IDC REPORT |
| Datasheets | CHAMP RIBBON CONNECTOR REPORT |
