TE Connectivity / AMP

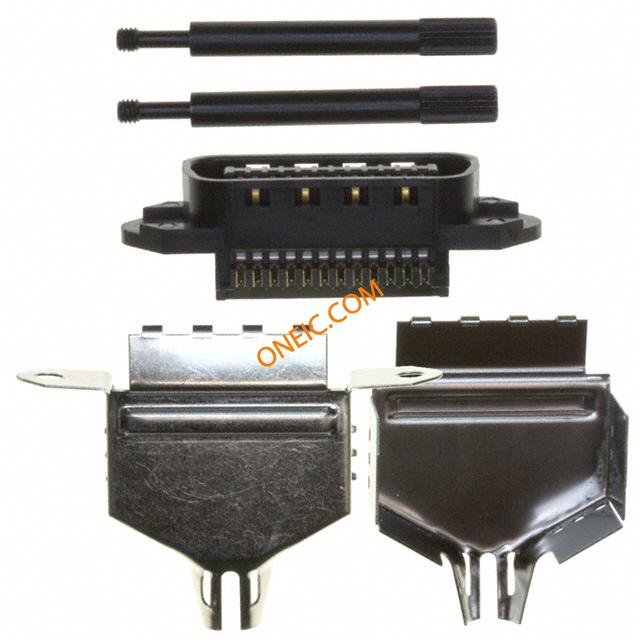

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Housing Material | Thermoplastic |
| Protective Cover | Without |
| Mating Connector Lock Type | Screwlocks |
| Number of Positions | 24 |
| Profile | Standard |
| Lead Free Solder Processes | Not relevant for lead free process |
| Product Category | Connectors |
| Cable Outer Diameter (mm in) | 6.35 â 12.70 [0.250 â 0.500] |
| Product Type | Connector Kit |
| Comment | M3.5 x 0.6-6G, shoulder stud screws (2) supplied. |
| Shielded | Yes |
| Gender | Plug |
| Packaging Method | Individual Kit |
| Slot Type Letter Code | B |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Cable Exit Angle | 180° |
| Contact Mating Area Plating Material | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| WireCable Type | 7 Strand, Solid |
| Hardware Plating | Zinc |
| Wire Range (Solid) (mm (AWG)) | 0.51-0.40 [24-26] |
| Color | Black |
| Shield Material | Carbon Steel |
| Hardware Material | Steel |
| Panel Attachment | Without |
| Wire Range (Stranded) (mm² AWG) | 0.20² [24] |
| Shield Plating | Bright Nickel |
| RoHSELV Compliance History | Always was RoHS compliant |
| Mating Connector Lock | With |
| Contact Material | Copper Alloy |
| Subcategory | Connector Interface |
| Packaging | Bag |
| Lead Time | 365 Days |
| Flange Feature | Insert, Threaded (M3.5) |
| Features | Mounting Hardware, Shielded |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Standard Package | 1 |
| Termination | IDC |
| Contact Finish Thickness | 30µin (0.76µm) |
| Connector Style | Center Strip Contacts |
| rohs | Lead free / RoHS Compliant |
