te connectivity / amp

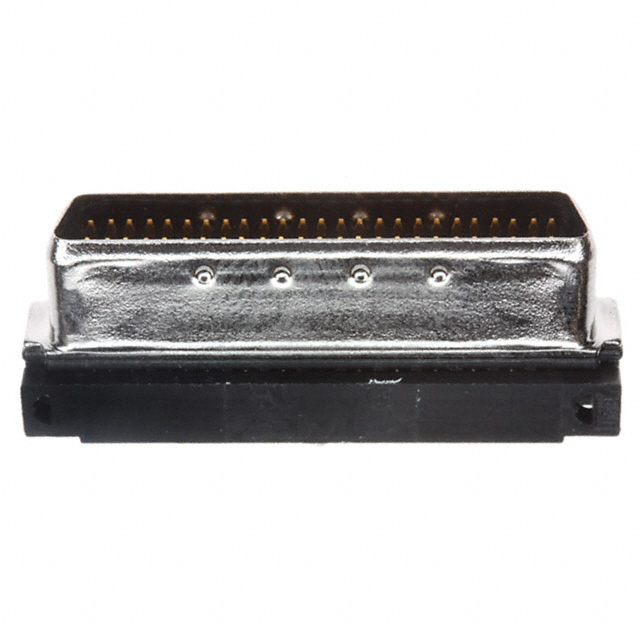

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | SCSI |
| Gender | PL |
| Pitch | 1.27 mm |
| Termination Method | IDT |
| Mounting | Cable Mount |
| Body Orientation | Right Angle |
| Standard Package | Rail / Tube |
| Wire Range (mm AWG) | 0.05-0.09² [30-28] |
| Rails | Without |
| Plug Shell Plating | Tin-Nickel Alloy |
| Housing Material | Thermoplastic |
| Number of Positions | 50 |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| Product Series | Series III |
| Solder Tail Contact Plating | Tin over Nickel |
| Terminate To | Wire |
| Product Type | Connector |
| Plug Shell Material | Steel |
| Shielded | Yes |
| Detent | Without |
| Termination Cover Method | Assembled |
| Contact Mating Area Plating Material | Gold (30), Gold Flash over Palladium Nickel |
| WireCable Type | Round Jacketed Cable |
| Housing Flammability Rating | UL 94V-0 |
| Termination Cover Type | Standard |
| Comment | Plug connector requires backshell kit for complete assembly |
| Wire Termination Type | IDC |
| Color | Black |
| Panel Attachment | Without |
| Wire Insulation Diameter (mm (in)) | 0.74 â 0.91 [0.029 â 0.036] |
| Termination Cover | With |
| RoHSELV Compliance History | Always was RoHS compliant |
| Mating Connector Lock | Without |
| Contact Material | Phosphor Bronze |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
| Packaging | Tube |
| Features | Shielded |
| Mounting Type | Free Hanging (In-Line) |
| Voltage Rating | 30V |
| Connector Type | Plug, Male Pins |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Contact Finish | Gold |
| Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 |
| Termination | IDC, Ribbon Cable |
| Contact Type | Signal |
| Current Rating | 1A |
| Contact Finish Thickness | Flash |
| Connector Style | D-Type |
| rohs | Lead free / RoHS Compliant |
| Contact Plating | Gold over Palladium Nickel |
| Depth | 8.31mm |
| Length | 40.11mm |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -55°C |
| Number of Contacts | 50 |
| Series | III |
| Width | 7.44mm |
| Factory Pack Quantity | 13 |
| Product | SCSI Connectors |
| Product Category | I/O Connectors |
| Operating Temperature Range | - 55 C to + 105 C |
| Termination Style | IDC |
| Mounting Style | Cable |
| Number of Positions / Contacts | 50 |
| Flammability Rating | UL 94 V-0 |
| Insulation Resistance | 1000 MOhms |
| RoHS | RoHS Compliant |
| Operating Temp Range | -55C to 105C |
| Number of Ports | 1 Port |
| Current Rating (Max) | 1/Contact A |
| Operating Temperature Max Deg. C | 105C |
| Operating Temperature Min Deg. C | -55C |
| Product Length (mm) | 40.11 mm |
| Product Height (mm) | 14.94 mm |
| Number of Terminals | 50 |
| Voltage Rating Max | 30VAC |
| Pitch (mm) | 1.27 mm |
| No. of Contacts | :50 |
| Contact Termination | :IDC |
| Connector Mounting | :Cable |
| Weight (kg) | 0.02 |
| Tariff No. | 85369010 |
| AgencyApprovals | ULRecognized,CSACertified |
| Angle | Straight |
| Application | Commercial |
| Brand/Series | III |
| ContactPlating | Gold(30)overNickel |
| Current,Rating | 1A |
| Diameter,Insulation | 0.029-0.036" |
| FlammabilityRating | UL94V-0 |
| Material,Contact | PhosphorBronze |
| Material,Housing | Thermoplastic |
| NumberofContacts | 50 |
| NumberofRows | 2 |
| PrimaryType | D-Subminiature |
| SpecialFeatures | Shielded |
| Standards | SCSI |
| StrainRelief | Straight |
| Voltage,Rating | 30VAC |
| Wire,AWG | 30-28 |
