te connectivity / amp

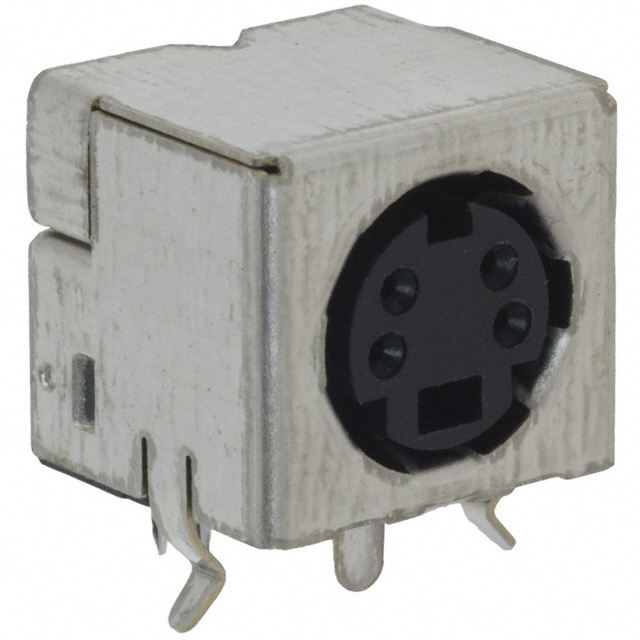

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Miniature Circular DIN |
| Gender | RCP |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Standard Package | Rail / Tube |
| PCB Mount Angle | Right Angle |
| Housing Material | Thermoplastic |
| PCB Mount Style | Thru Hole |
| Number of Positions | 4 |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Color Code | None |
| SPDIF Connector | Without |
| Solder Tail Contact Plating | Tin |
| Housing Color | Black |
| Product Type | Connector |
| Stacked | No |
| Shielded | Yes |
| Front Panel Grounding | Without |
| Shield Plating | Tin over Nickel |
| Contact Mating Area Plating Material | Gold (30) |
| PCB Retention Method | Hold Down Post |
| Housing Flammability Rating | UL 94V-0 |
| Shield Material | Copper Alloy |
| Contact Underplating | Nickel (50) |
| Grounding Clips | Without |
| PCB Retention Feature | Yes |
| RoHSELV Compliance History | Always was RoHS compliant |
| Contact Material | Copper Alloy |
| Orientation | Keyed |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Shell Size - Insert | Mini DIN |
| Connector Type | Receptacle, Female Sockets |
| Shell Material, Finish | Thermoplastic |
| Contact Finish | Gold |
| Packaging | Tube |
| Operating Temperature | -55°C ~ 105°C |
| Fastening Type | Push-Pull |
| Current Rating | 1A |
| Voltage - Rated | 30VDC |
| Contact Finish Thickness | 30µin (0.76µm) |
| Other Names | 57491811 |
| Features | Board Lock, Shielded |
| rohs | Lead free / RoHS Compliant |
| Connector Size | Miniature |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Shielded/Unshielded | Shielded |
| Factory Pack Quantity | 40 |
| Product Category | Circular DIN Connectors |
| Voltage Rating | 30 V |
| RoHS | RoHS Compliant |
| Termination Style | Solder Tail |
| Contact Gender | Socket (Female) |
| Standard | Mini DIN |
| Mounting Style | Through Hole |
| Shell Plating | Tin |
| Rad Hardened | No |
| Current Rating (Max) | 1 A |
| Strain Relief | No |
| Product Length (mm) | 14 mm |
| Product Depth (mm) | 12.83 mm |
| Product Height (mm) | 13 mm |
| Family | 5749181 |
| Series | :- |
| No. of Contacts | :4 |
| Contact Termination | :Through Hole Right Angle |
| Connector Mounting | :PCB |
| Connector Body Material | :Plastic |
| Color | :Black |
| Connector Color | :Black |
| Weight (kg) | 0 |
| Tariff No. | 85369010 |
| Brand/Series | MiniCircularDIN |
| ContactPlating | Gold |
| ContactType | Pin |
| MountingType | PCB |
| NumberofContacts | 4 |
| PrimaryType | DIN |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 5749181-1 |
| Datasheets | RECEPTACLE ASSY W/ HOLD DOWN, 4 POS RIGHT ANGLE, MINIATURE CIRCULAR DIN |
| Datasheets | 3D PDF |
| Datasheets | MD_5749181-1_090820112345 |
