te connectivity / amp

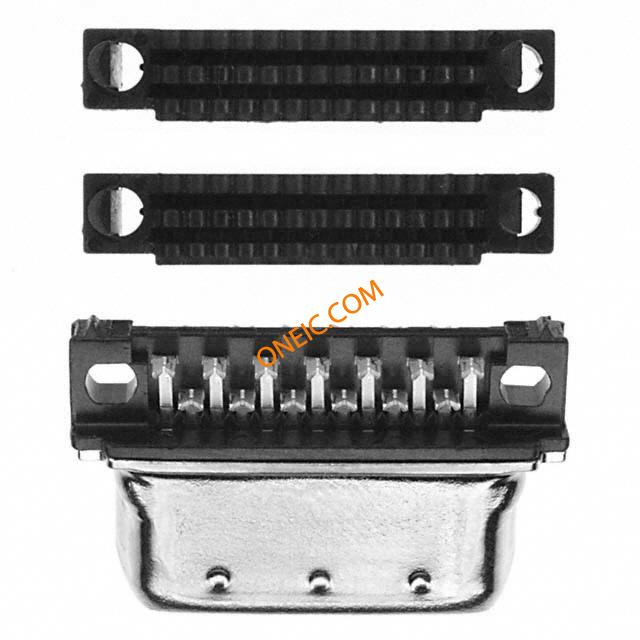

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | SCSI |
| Gender | PL |
| Pitch | 1.27 mm |
| Termination Method | IDT |
| Mounting | Cable Mount |
| Body Orientation | Right Angle |
| Standard Package | Bulk |
| Product Category | D-Sub Standard Connectors |
| RoHS | RoHS Compliant |
| Number of Positions / Contacts | 26 |
| Number of Rows | 2 |
| Mounting Style | Wire |
| Termination Style | IDC |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Series | Series III |
| Shell Material | Steel |
| Shell Plating | Tin Nickel Alloy over Copper |
| Factory Pack Quantity | 168 |
| Wire Range (mm AWG) | 0.05-0.09² [30-28] |
| Rails | Without |
| Plug Shell Plating | Tin-Nickel Alloy |
| Housing Material | Thermoplastic |
| Number of Positions | 26 |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| Product Series | Series III |
| Solder Tail Contact Plating | Tin over Nickel |
| Terminate To | Wire |
| Product Type | Connector |
| Plug Shell Material | Steel |
| Shielded | Yes |
| Detent | Without |
| Termination Cover Method | Unassembled |
| Contact Mating Area Plating Material | Gold (30), Gold Flash over Palladium Nickel |
| WireCable Type | Round Jacketed Cable |
| Housing Flammability Rating | UL 94V-0 |
| Termination Cover Type | Standard |
| Comment | Plug connector requires backshell kit for complete assembly |
| Wire Termination Type | IDC |
| Color | Black |
| Panel Attachment | Without |
| Wire Insulation Diameter (mm (in)) | 0.74 â 0.91 [0.029 â 0.036] |
| Termination Cover | With |
| RoHSELV Compliance History | Always was RoHS compliant |
| Mating Connector Lock | Without |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
| Packaging | Bulk |
| Features | Shielded |
| Mounting Type | Free Hanging (In-Line) |
| Voltage Rating | 30V |
| Connector Type | Plug, Male Pins |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Contact Finish | Gold |
| Operating Temperature | -55°C ~ 105°C |
| Termination | IDC, Ribbon Cable |
| Contact Type | Signal |
| Current Rating | 1A |
| Contact Finish Thickness | Flash |
| Connector Style | D-Type |
| rohs | Lead free / RoHS Compliant |
| Number of Ports | 1 Port |
| Number of Contacts | 26 POS |
| Product Length (mm) | 24.87 mm |
| Product Height (mm) | 14.94 mm |
| Number of Terminals | 26 |
| Pitch (mm) | 1.27 mm |
| Operating Temp Range | -55C to 105C |
| Current Rating (Max) | 1/Contact A |
| Operating Temperature Max Deg. C | 105C |
| Operating Temperature Min Deg. C | -55C |
| Voltage Rating Max | 30VAC |
| No. of Contacts | :26 |
| Contact Termination | :IDC / IDT |
| Connector Mounting | :Cable |
| Cable Diameter Max | :0.91mm |
| Cable Diameter Min | :0.74mm |
| Flammability Rating | :UL94V-0 |
| Material | :Black Thermoplastic |
| Terminal Plating | :Tin-lead |
| Wire Area Size Max | :0.08mm² |
| Wire Area Size Min | :0.09mm² |
| Wire Size AWG Max | :28AWG |
| Wire Size AWG Min | :30AWG |
| Weight (kg) | 0.006 |
| Tariff No. | 85369010 |
