te connectivity / amp

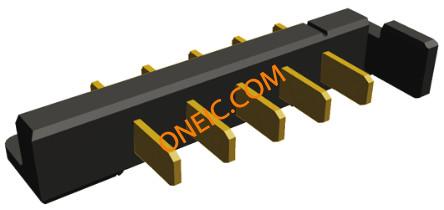

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Battery Interconnect |
| Gender | HDR |
| Pitch | 5 mm |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Standard Package | Trays |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| RoHSELV Compliance History | Always was RoHS compliant |
| Lead Free Solder Processes | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| Mount Angle | Right Angle |
| Voltage Key | Right Hand |
| Solder Tail Contact Plating | Tin over Nickel |
| Mount | Through-Hole |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Centerline (mm (in)) | 5.00 [0.197] |
| Housing Color | Black |
| PCB Retention Feature | No |
| Contact Mating Area Plating Material | Tin over Nickel |
| Mounting Holes | Without |
| Housing Flammability Rating | UL 94V-0 |
| Product Type | Header |
| Voltage (VAC) | 12 |
| Number of Positions | 5 |
| Contact Material | Brass |
| Current Rating | 7A |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -30°C ~ 70°C |
| Connector Style | 12.0V Battery |
| Contact Finish Thickness | 74.8µin (1.90µm) |
| Number of Rows | 1 |
| Voltage Rating | 12V |
| Connector Type | Header, Male Blades |
| Contact Finish | Nickel |
| Fastening Type | Push-Pull |
| Termination | Solder |
| Features | Right Hand Keying |
| Mounting Type | Through Hole, Right Angle |
| Color | Black |
| Packaging | Bulk |
| Other Names | 57874221 |
| rohs | Lead free / RoHS Compliant |
| Number of Contacts | 5 |
| Factory Pack Quantity | 88 |
| Mounting Angle | Right |
| Product Category | Power to the Board |
| Contact Plating | Tin |
| Termination Style | Solder Cup |
| Contact Gender | Pin (Male) |
| Number of Positions / Contacts | 5 |
| Mounting Style | Through Hole |
| RoHS | RoHS Compliant |
| 主体向性 | 直角 |
| 覆盖 | 覆盖 |
| 安装类型 | 通孔 |
| 触点材料 | 黄铜 |
| 端接方法 | 焊接 |
| 行数 | 1 |
| 触点数目 | 5 |
| 额定电压 | 12 V 交流 |
| 节距 | 3 mm, 5 mm |
| 封装方法 | 托盘 |
| 端子接触部电镀厚度 | 2.54 µm [ 100 µin ] |
| 连接器和端子端接到 | 印刷电路板 |
| Centerline (Pitch) | 5 mm [ .197 in ] |
| 封装数量 | 88 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 5787422 |
| Datasheets | HEADER ASSEMBLY, RIGHT ANGLE, RIGHT VOLTAGE KEY, 12V, STRAIGHT SOLDER TAILS, BATTERY INTERCONNECT |
| Datasheets | 3D PDF |
| Datasheets | POWER_CONNECTORS_CATALOG_SEC09_LAPTOPS_PORTABLES |
| Datasheets | 2_PIECE_POWER_CONNECTORS_qrg_4-1773458-1 |
| Datasheets | MD_5787422-1_06302014234_dmtec |
