Manufacturer Part Number:

58433-3

OneIC Part Number:

35-58433-3

Manufacturer:

te connectivity / amp

Description:

Hand Tool Assembly And Die Assembly

Customer Reference:

Datasheet:

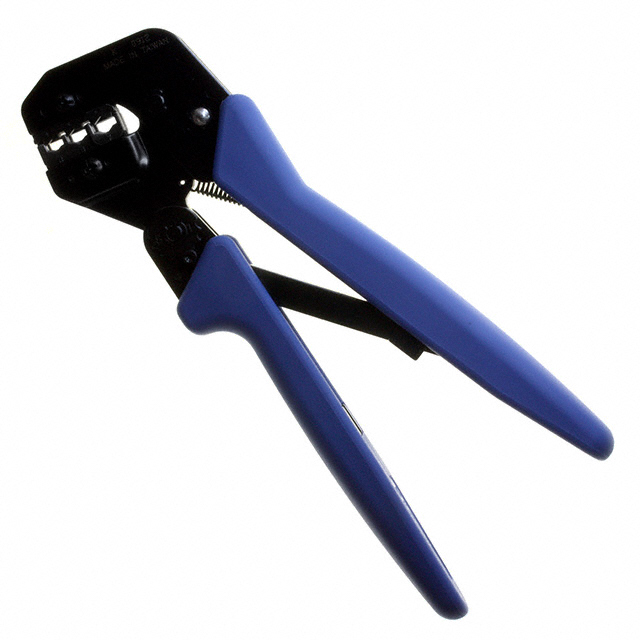

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	Crimp Tool
Standard Package	Bulk
Product Category	Crimpers
RoHS	Not Applicable
Product	Crimpers
Packaging	Bulk
Factory Pack Quantity	1
Subcategory	Assembly Tools
Lead Time	21 Days
Tool Type	Hand Crimper
Features	Side Entry, Ratchet
For Use With/Related Products	Splices and Terminals, 10-22 AWG
rohs	Not applicable / Not applicable
Connector Type	PIDG Terminal
Maximum Wire Size	10 AWG
Minimum Wire Size	22AWG
Crimp Size	:22AWG to 16AWG, 22AWG to 18AWG
For Use With	:Tyco Amp PIDG or PLASTI-GRIP Terminals and PIDG Faston Terminals
Series	:PRO-CRIMPER III Hand Crimping Tool Assembly
Weight (kg)	0.644
Tariff No.	85151100

Documents & Media

RESOURCE TYPE	LINK
Datasheets	Tooling Solutions Brochure
Datasheets	58433-3, 58423-1 Instr Sheet
Datasheets	PLASTI GRIP_QRG
Datasheets	1773464-1_QRG_PIDG_TERMINALS_AND_SPLICES
Datasheets	PRO-CRIMPER III Hand Crimping Tool Assembly 58433-3 with Die Assembly 58423-1
