Manufacturer Part Number:

58495-1

OneIC Part Number:

35-58495-1

Manufacturer:

te connectivity / amp

Description:

Hand Tool Assembly And Die Assembly

Customer Reference:

Datasheet:

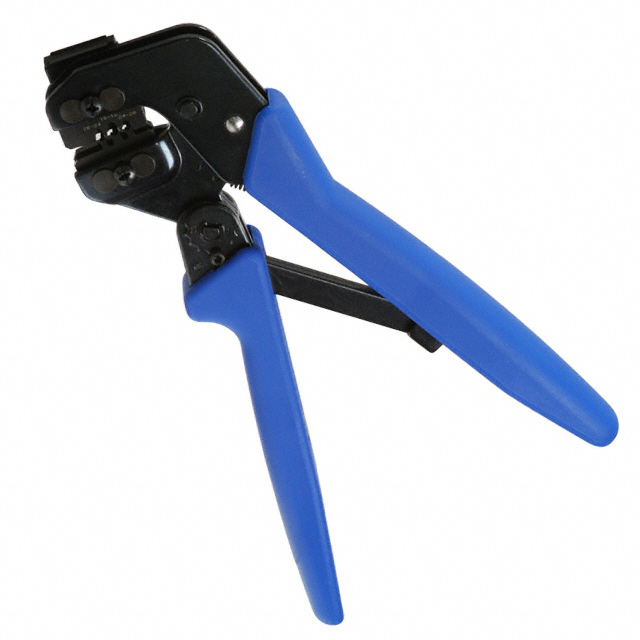

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	Crimp Tool
Standard Package	Trays
Product Category	Crimpers
RoHS	Not Applicable
Product	Crimpers
Fits Cable/Wire	24-20 AWG
Packaging	Tray
Factory Pack Quantity	1
Subcategory	Assembly Tools
Lead Time	21 Days
Tool Type	Hand Crimper
Features	Side Entry, Ratchet
For Use With/Related Products	Backplane and Circular Contacts, 16-28 AWG
rohs	Not applicable / Not applicable
Connector Type	Pin/Socket Contact
Maximum Wire Size	16 AWG
Minimum Wire Size	28AWG
Weight (kg)	0.658
Tariff No.	85369010
Tool type	for crimping
Multiplicity	1
Gross weight	0.67 kg
Application	CPC-0-016308, CPC-1-66101-9
Connector series	Type III, Type III+
Crimp tool application	terminals

Documents & Media

RESOURCE TYPE	LINK
Datasheets	58495-(1,2) Instr Sheet
Datasheets	Tooling Solutions Brochure
Datasheets	Signal Contacts
Datasheets	AMP Circular Connectors for Commercial Signal & Power Applications
Datasheets	PRO-CRIMPER III Hand Crimping Tool Assembly 58495-1 with Die Assembly 58495-2
Datasheets	PRO-CRIMPER II Hand Application Tool 58495-1 w/Die Assembly 58495-2
Datasheets	PRO-CRIMPER II Hand Application Tool 58495-1 w/Die Assembly 58495-2
