te connectivity / amp

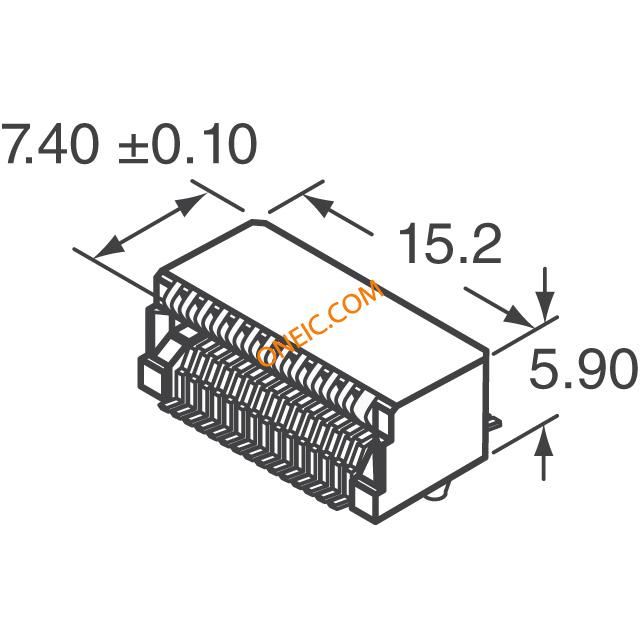

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | XFP |
| Gender | PL |
| Pitch | 0.8 mm |
| Termination Method | Solder |
| Mounting | Surface Mount |
| Body Orientation | Right Angle |
| Standard Package | Bulk |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| PCB Mount Style | Single Sided, Double Sided |
| Brand | Tyco Electronics |
| Packaging Method | Reel |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Black |
| Termination Type | Surface Mount |
| Contact Mating Area Plating Material | Gold (15) over Nickel |
| Housing Flammability Rating | UL 94V-0 |
| Product Type | Connector |
| RoHSELV Compliance History | Always was RoHS compliant |
| Number of Positions | 30 |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | XFP |
| Contact Finish | Gold |
| Packaging | Tape & Reel (TR) |
| Termination | Solder |
| Contact Finish Thickness | 15µin (0.38µm) |
| Connector Style | Receptacle |
| rohs | Lead free / RoHS Compliant |
| Other Names | A97460CT |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 30 |
| Number of Ports | 1 |
| Factory Pack Quantity | 480 |
| Product | Infiniband Connectors |
| Product Category | I/O Connectors |
| Color | Black |
| Termination Style | Solder |
| Number of Positions / Contacts | 30 |
| Flammability Rating | UL 94 V-0 |
| Mounting Style | SMD/SMT |
| RoHS | RoHS Compliant |
| Operating Temp Range | -55C to 85C |
| Positions Loaded | 30 |
| Current Rating (Max) | 0.5/Contact A |
| Product Length (mm) | 15.2 mm |
| Product Depth (mm) | 7.4 mm |
| Product Height (mm) | 5.9 mm |
| Voltage Rating Max | 120VAC |
| Pitch (mm) | 0.8 mm |
| Family | 788862 |
| No. of Contacts | :30 |
| Contact Termination | :Surface Mount Right Angle |
| Connector Mounting | :PCB |
| Body Plating | :Gold |
| Connector Mounting Orientation | :PCB |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
| Product Range | :- |
| No. of Rows | :2 |
| Pitch Spacing | :0.8mm |
| Lead Spacing | :0.8mm |
| Angle | Right |
| ContactPlating | Gold(15)overNickel |
| FlammabilityRating | UL94V-0 |
| Length,Overall | 15.2mm |
| Material,Contact | PhosphorBronze |
| Material,Housing | LCP |
| NumberofContacts | 30 |
| NumberofRows | 2 |
| PinSpacing | 0.8mm |
| PrimaryType | BoardtoBoard |
