te connectivity / amp

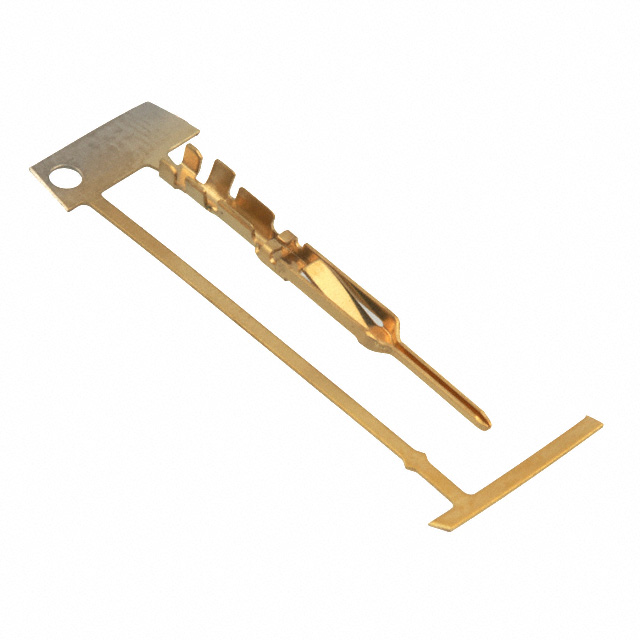

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Connector Type | Connector FFC-FPC |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Over Nickel |
| Gender | PIN |
| Termination Method | Crimp |
| Standard Package | Tape & Reel |
| Product Category | FFC & FPC Connectors |
| RoHS | RoHS Compliant |
| Product Type | Contacts |
| Pitch | 2.54 mm |
| Number of Positions / Contacts | 1 |
| Mounting Angle | Straight |
| Mounting Style | Wire |
| Packaging | Reel |
| Factory Pack Quantity | 10000 |
| Termination Style | IDC |
| Wire Type | Discrete Wire |
| Comment | Crimp Control Monitor 567561-2 for AMP-O-LECTRIC.; Crimp Control Monitor 567561 |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| Contact Underplating | Nickel (50) |
| Centerline (mm (in)) | 2.54 [0.100] |
| Solder Tail Contact Plating | Gold Flash |
| PinSocket | Pin |
| Packaging Method | Strip |
| Wire Insulation Diameter (mm in) | 1.02 â 1.42 [0.040 â 0.056] |
| Contact Type | Pin |
| Wire Range (mm (AWG)) | 0.12-0.40² [26-22] |
| Contact Mating Area Plating Material | Gold (15) |
| WireCable Type | Round Wire, Discrete |
| RoHSELV Compliance History | Always was RoHS compliant |
| Wire Gauge | 22-26 AWG |
| Contact Finish | Gold |
| Pin or Socket | Pin |
| Contact Finish Thickness | 15µin (0.38µm) |
| Contact Termination | Crimp |
| rohs | Lead free / RoHS Compliant |
| Other Names | A100840CT |
| Maximum Contact Resistance | 25mΩ |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -55°C |
| Operating Temp Range | -65C to 105C |
| Current Rating (Max) | 3 A |
| Housing Material | Not Required |
| Body Orientation | Straight |
| Type | Contact |
| Number of Contact Rows | Not Required |
| Number of Contacts | 1 POS |
| Housing Color | Not Required |
| Product Length (mm) | 21.1 mm |
| Contact Gender | PIN |
| Pitch (mm) | Not Required mm |
| Wire Size | 22-26 AWG |
| Series | :FFC |
| For Use With | :FFC Series Connectors |
| Weight (kg) | 0.005 |
| Tariff No. | 85366990 |
| Wire Size AWG Min | :26AWG |
| Wire Size AWG Max | :22AWG |
| ContactPlating | GoldoverNickel |
| ContactResistance | 25mΩ |
| ForUseWith | WiretoBoard |
| Material,Contact | PhosphorBronze |
| Temperature,Operating,Maximum | 105°C |
| Temperature,Operating,Minimum | -55°C |
| Temperature,Operating,Range | -55to+105°C |
| Termination | Crimp |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 86557 |
| Datasheets | CONTACT, PIN, 025 SQ ROUND WIRE, 100 CENTERLINE, FFC |
| Datasheets | 3D PDF |
| Datasheets | Flexible Flat Cable (FFC) Housings with Contact Cavities on 254-mm (100-in] Centerline Spacing |
| Datasheets | FFC Round Wire Pin and Receptacle Contacts |
| Datasheets | Extraction Tools 91047-[ ] |
| Datasheets | Extraction Tool for Flexible Flat Cable (FFC) |
| Datasheets | Extraction Tool for Flexible Flat Cable (FFC) |
