Manufacturer Part Number:

90800-1

OneIC Part Number:

35-90800-1

Manufacturer:

te connectivity / amp

Description:

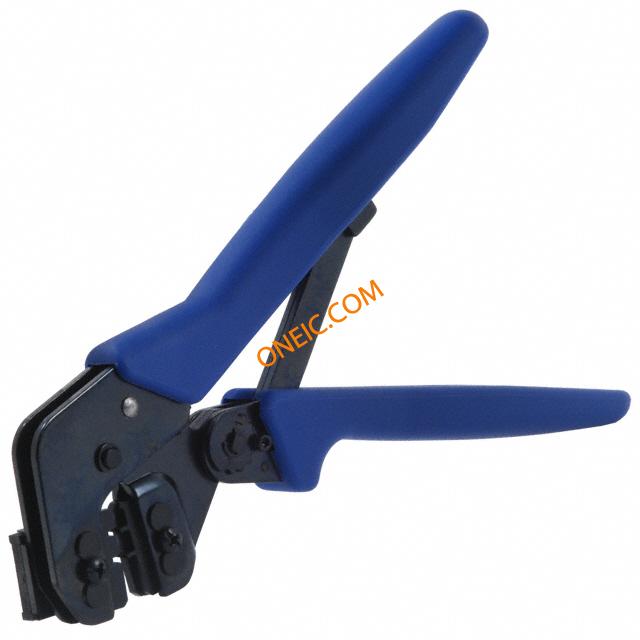

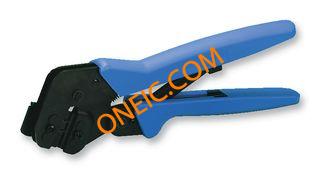

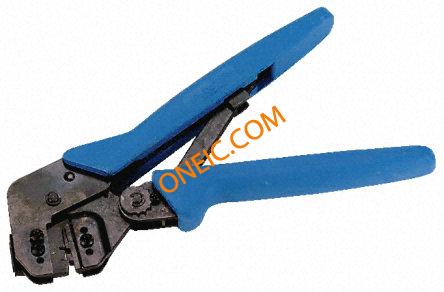

Hand Tool Assembly And Die Assembly

Customer Reference:

Datasheet:

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	Crimp Tool
Standard Package	Bulk
Product Category	Crimpers
RoHS	Not Applicable
Product	Crimpers
Packaging	Bulk
Factory Pack Quantity	1
Subcategory	Assembly Tools
Lead Time	42 Days
Tool Type	Hand Crimper
Features	Side Entry, Ratchet
For Use With/Related Products	D-Sub Contacts, 22-28 AWG
rohs	Not applicable / Not applicable
Connector Type	Contact
Maximum Wire Size	22 AWG
Minimum Wire Size	28AWG
DELETED	Not Compliant
Series	:AMPLIMITE
Weight (kg)	0.85
Tariff No.	85369010

Documents & Media

RESOURCE TYPE	LINK
Datasheets	Tooling Solutions Brochure
Datasheets	90800-(1,2) Instr Sheet
Datasheets	AMPLIMITE Subminiature D Connectors - Cable Connectors
Datasheets	PRO-CRIMPER III Hand Crimping Tool Assembly 90800-1 with Die Assembly 90800-2
