te connectivity / amp

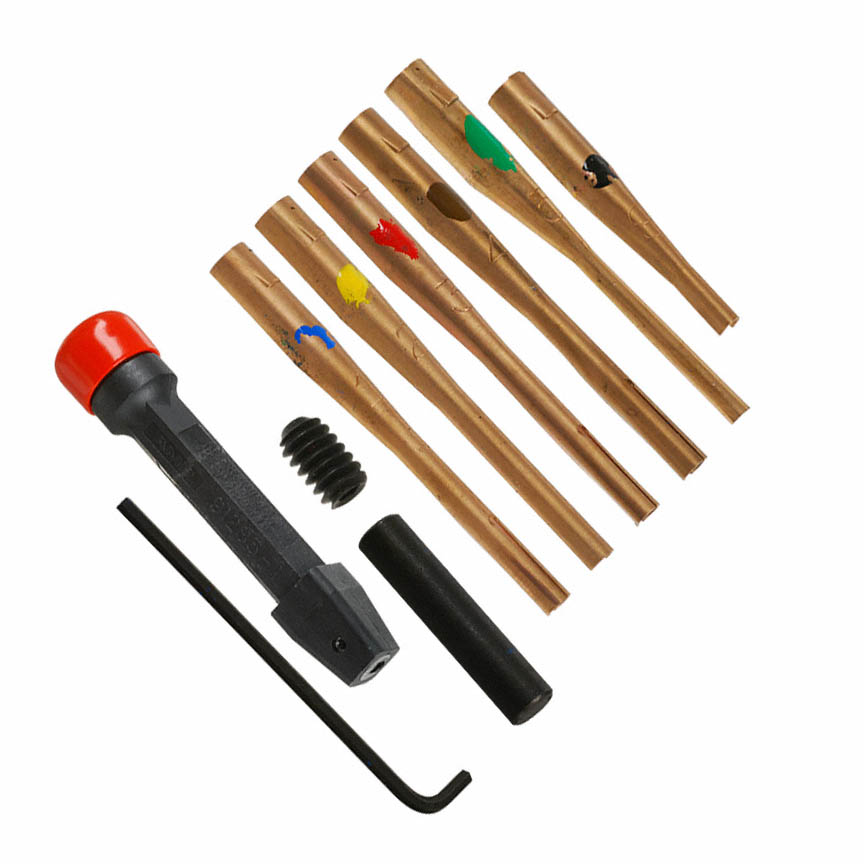

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Insertion and Extraction Tool |
| Family | 91285-1 |
| Standard Package | Bulk |
| Product Category | D-Sub Tools & Hardware |
| RoHS | Not Applicable |
| Product | Tools |
| Packaging | Bulk |
| Factory Pack Quantity | 1 |
| Subcategory | Assembly Tools |
| Lead Time | 42 Days |
| Tool Type | Insertion/Extraction Tool |
| For Use With/Related Products | D-Sub Terminals |
| rohs | Not applicable / Not applicable |
| Contact Type | Pin |
| For Use With | :Amplimite HD-20, HD-22 Series Contacts |
| Tool Body Material | :(Not Available) |
| Wire Size (AWG) | :28AWG to 22AWG |
| Wire Size Range (AWG) | :28-24 |
| Weight (kg) | 0.032 |
| Tariff No. | 85369010 |
| Color,Handle | Black |
| ForUseWith | Size20crimpandsoldercupcontacts |
| Length | 3.75in. |
| PrimaryType | Tool |
| Size | 28-24AWG |
| TipSize | HD20-22 |
| ToolType | Extraction/Insertion |
| UsedWith | CrimpandSolderCupContacts |
| WireSize | 18-28AWG |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 91285-1, 543382-x Instr Sheet |
| Datasheets | AMPLIMITE Subminiature D Connectors - Cable Connectors |
| Datasheets | Insertion/Extraction Tool 91285-1 and Replacement Tip Kits 543382-[ ] |
