te connectivity / alcoswitch

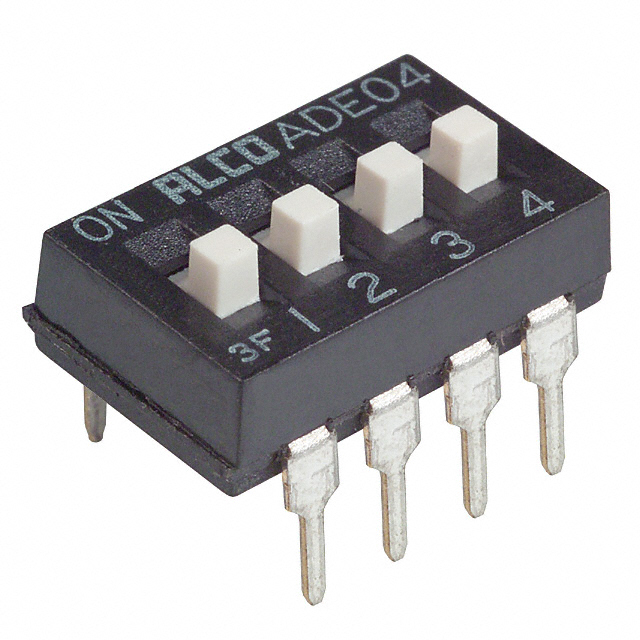

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Number of Positions | 4 |
| Mounting | Through Hole |
| Pole Throw Configuration | SPST |
| Switch Configuration | OFF ON |
| Actuator Style | Extended Slide |
| Terminal Type | PC Pins |
| Maximum Current Rating | 0.1@24VDC A |
| Maximum DC Voltage Rating | 24 V |
| Operating Temperature | -30 to 85 °C |
| Standard Package | Rail / Tube |
| Washable | Yes |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Circuit | SPST |
| Contact Rating @ Voltage | 0.1A @ 24VDC |
| Orientation | Top Actuated |
| Actuator Level | Raised |
| rohs | Lead free / RoHS Compliant |
| Contact Configuration | 4P |
| Contact Current Rating | 0.1 A @ 24 V dc |
| Contact Material | Gold Over Nickel Plated Copper Alloy |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Package Style | DIP |
| Factory Pack Quantity | 35 |
| Product Category | DIP Switches / SIP Switches |
| Terminal Pitch | 2.54 mm |
| Contact Rating | 1 A |
| Switch Type | DIP |
| Termination Style | PCB |
| Contact Plating | Gold |
| Package / Case | DIP |
| Actuator | Slide |
| Current Rating | 1 A |
| Part # Aliases | 1825057-3 |
| RoHS | RoHS Compliant |
| No. of Switch Positions | :4 |
| Pitch Spacing | :2.54mm |
| Contact Current DC Max | :100mA |
| Switch Mounting | :Through Hole |
| AC Power | :0.4VA |
| Actuation Type | :Raised |
| Contact Resistance | :50mohm |
| Dielectric Strength VDC | :500V |
| External Length / Height | :5.25mm |
| External Width | :7.5mm |
| Flammability Rating | :UL94V-4 |
| Insulation Resistance | :1000Mohm |
| Lead Spacing | :2.54mm |
| Length | :12.14mm |
| No. of Mechanical Operations | :1000 |
| No. of Positions | :4 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-45°C |
| Pin Configuration | :DIL |
| Row Pitch | :7.62mm |
| Series | :AD |
| Weight (kg) | 0.043 |
| Tariff No. | 85365019 |
| ActuatorType | Slide |
| TycoPartNumber | 1825057-3 |
| Type | DIP |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 1825057 Drawing |
| Datasheets | Switches Catalog |
