te connectivity / alcoswitch

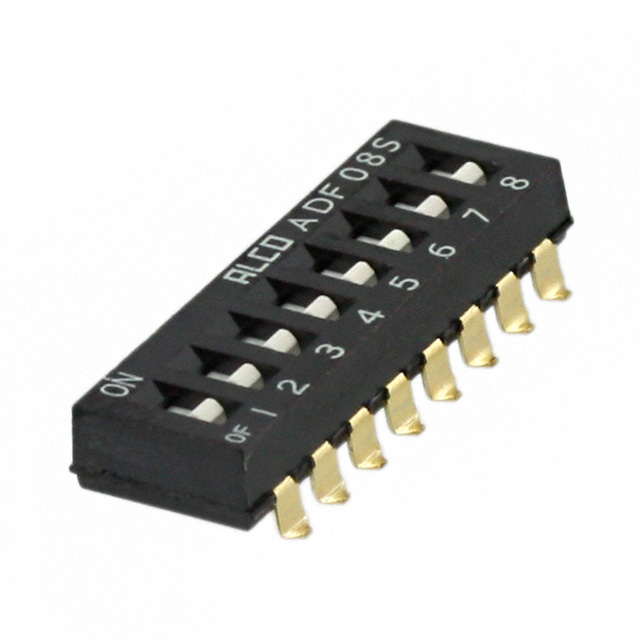

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Standard Package | Bulk |
| Washable | Yes |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Circuit | SPST |
| Contact Rating @ Voltage | 0.1A @ 24VDC |
| Orientation | Top Actuated |
| Other Names | 4-1825059-1 |
| Actuator Level | Flush |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 20 |
| Mounting Angle | Vertical |
| Product Category | DIP Switches / SIP Switches |
| Terminal Pitch | 2.54 mm |
| Contact Rating | 0.4 VA |
| Operating Temperature Range | - 30 C to + 85 C |
| Mounting | SMD/SMT |
| Contact Form | SPST |
| Termination Style | Solder |
| Switch Type | DIP |
| Contact Plating | Gold |
| Package / Case | DIP-8 |
| Actuator | Slide |
| Part # Aliases | 4-1825059-1 |
| Power Rating | 0.4 VA |
| RoHS | RoHS Compliant |
| Contact Material | Copper Alloy |
| ActuatorType | Slide,Flush |
| ContactForm | SPSTx8 |
| Current,Rating | 100mA |
| MountingType | PCBMount |
| Termination | PCBPins |
| Type | DIP |
| Voltage,Rating | 24VDC |
| 系列 | ADF, Alcoswitch |
| 位置数 | 8 |
| 致动器水平 | Flush |
| 电路 | SPST |
| 不同电压时的触头额定电流 | 0.1A @ 24VDC |
| 致动器类型 | Standard |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 1825059 Drawing |
