TE Connectivity / Alcoswitch

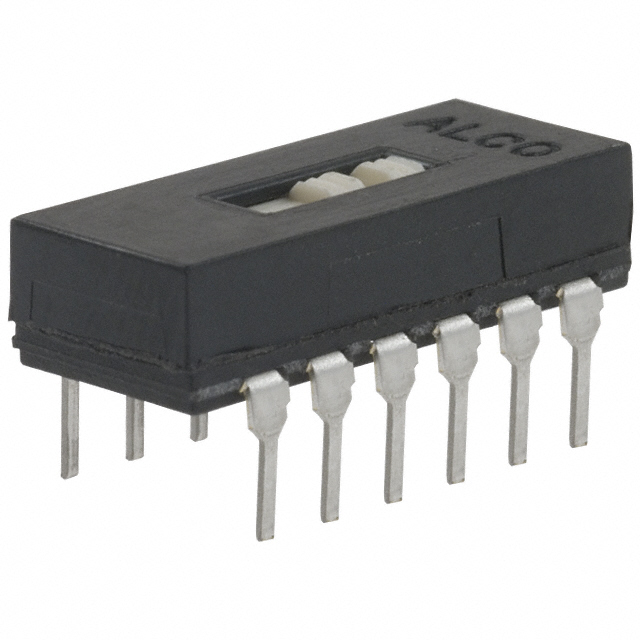

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Circuit | 4PDT |
| Mounting Type | Through Hole |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Actuator Type | Screwdriver Slot |
| Standard Package | 29 |
| Contact Rating @ Voltage | 0.3A @ 115VAC |
| Orientation | Vertical |
| Actuator Material | PET |
| Contact Configuration | 4PDT |
| Contact Current Rating | 0.3 A @ 115 V dc |
| Contact Material | Silver Plated Copper Alloy |
| Contact Resistance | 40mΩ |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Terminal Type | Through Hole |
| rohs | Compliant |
| Factory Pack Quantity | 29 |
| Voltage Rating AC | 115 V |
| Product Category | Slide Switches |
| Operating Temperature Range | - 40 C to + 80 C |
| Contact Form | 4PDT |
| Mounting Angle | Vertical |
| Mounting Style | Through Hole |
| Flammability Rating | UL 94 V-0 |
| Contact Plating | Silver |
| Actuator | Flush, Top |
| Part # Aliases | 2-1825011-1 |
| Type | Slide Switch |
| Travel | 6.6 mm |
| RoHS | RoHS Compliant |
| ActuatorType | Slide,Flush |
| Color | Actuator-Natural |
| ContactForm | 4PDT |
| Current,Rating | 20mA |
| DielectricStrength | 600VAC |
| MountingHoleSize | 0.031In. |
| MountingType | PCB |
| NumberofPoles | 4 |
| NumberofPositions | 2 |
| Operation | OnOn |
| SpecialFeatures | Auto-Insertable |
| Termination | PCBPins |
| TycoPartNumber | 2-1825011-1 |
| Voltage,Rating | 20VDC |
| 系列 | ASF, Alcoswitch |
| 电路 | 4PDT |
| 开关功能 | On-On |
| 不同电压时的触头额定电流 | 0.3A @ 115VAC |
| 致动器类型 | Screwdriver Slot |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Switches Catalog |
| Datasheets | 1825011 Drawing |
