TE Connectivity / Alcoswitch

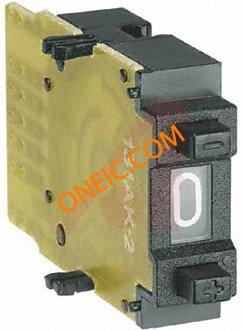

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Industry Aliases | 1-1437603-2, DPS8-131-AK |
| Subcategory | Switch Thumb-Pushwheel |
| Lead Time | 94 Days |
| Component Mounting Area | No |
| Mounting Type | Panel Mount, Screw (Rear) |
| Read Out | 0 ~ 9 |
| Termination Style | Card Edge |
| Actuator Type | Pushwheel |
| Standard Package | 10 |
| Output Code | BCD |
| Other Names | 1-1437603-2 |
| rohs | Lead free / RoHS Compliant |
| Contact Material | Copper Alloy |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | +20°C |
| Number of Switch Positions | 10 |
| Output Coding | BCD |
| Switch Readout | 0 to 9 |
| Factory Pack Quantity | 10 |
| Product Category | Thumbwheel Switches & Pushwheel Switches |
| Current Rating | 0.4 VA |
| Contact Rating | 0.4 VA |
| Number of Positions | 10 |
| Packaging | Bulk |
| Actuator | Pushwheel, Mini |
| Part # Aliases | 1-1437603-2 |
| Number of Sections | 10 |
| Power Rating | 0.4 VA |
| Actuator Style | :- |
| Switch Mounting | :Panel |
| Readout | :0-9 |
| Switch Terminals | :Solder |
| Leaded Process Compatible | :Yes |
| Overall Height | :24mm |
| Panel Cutout Height | :19mm |
| Series | :DPS8 |
| Weight (kg) | 0.004 |
| Tariff No. | 00000000 |
| ActuatorType | Pushwheel |
| Application | Fornumericalinputapplications |
| BodyStyle | Miniature |
| Material,Housing | Noryl-SE1 |
| MountingType | Snap-In |
| NumberofPositions | 10 |
| Operation | BCDoutput. |
| Resistance,Contact | 0.15Ohms(Max.) |
| SpecialFeatures | InstrumentGrade |
| Temperature,Operating | -20to+80°C |
| Termination | CardEdgeTabs |
| TycoPartNumber | 1-1437603-2 |
| Type | Pushwheel |
| Voltage,Rating | 20VDC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | DPS8 Series |
| Datasheets | DPS-8 Series Drawing |
