TE Connectivity / Alcoswitch

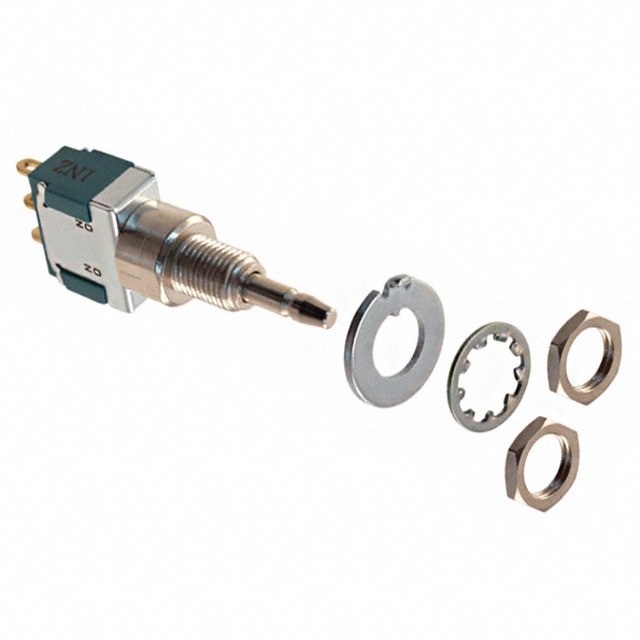

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Industry Aliases | 2-1437567-8, MPA106D |
| Subcategory | Switch Push Button |
| Packaging | Loose Piece |
| Lead Time | 101 Days |
| Switch Function | On-On |
| Current Rating | 6A (AC), 4A (DC) |
| Panel Cutout Dimensions | Circular - 6.35mm Dia |
| Mounting Type | Panel Mount, Rear |
| Voltage Rating - AC | 125V |
| Type | Standard |
| Electrical Life | 50,000 Cycles |
| Termination Style | Solder Lug |
| Operating Temperature | -20°C ~ 80°C |
| Actuator Type | Plunger for Cap |
| Standard Package | 25 |
| Voltage Rating - DC | 28V |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
| Contact Configuration | SPDT |
| Contact Current Rating | 4 A, 6 A |
| Contact Material | Silver Plated Copper |
| Switch Operation | On-On |
| Terminal Type | Wire Lug |
| Factory Pack Quantity | 25 |
| Voltage Rating AC | 250 V |
| Product Category | Pushbutton Switches |
| Terminal Seal | Molded |
| Series | MPA6 |
| Contact Form | SPDT |
| Mounting Style | Panel |
| Housing Material | Thermoset |
| Contact Plating | Silver |
| Actuator | Plunger |
| Part # Aliases | 2-1437567-8 |
| RoHS | RoHS Compliant |
| ContactForm | SPDT |
| Current,Rating | 6Amps |
| DielectricStrength | 1000VAC |
| MountingHoleSize | 0.25In. |
| MountingType | Panel |
| NumberofPoles | 1 |
| NumberofPositions | 2 |
| Operation | On-On |
| Termination | SolderLugs |
| Voltage,Rating | 250VAC |
| 系列 | MPA, Alcoswitch |
| 面板开口尺寸 | Circular - 6.35mm Dia |
| 开关功能 | On-On |
| 额定电压 - 交流 | 125V |
| 装配类型 | Panel Mount, Rear |
| 电路 | SPDT |
| 额定电流 | 6A (AC), 4A (DC) |
| 类型 | Standard |
| 致动器类型 | Plunger for Cap |
| 额定电压 - 直流 | 28V |
| 螺纹尺寸 | 1/4-40 UNS-2A |
| 防尘 | 否 |
| 致动器数量 | 单 |
| 封装方法 | 批量 |
| 端子基材 | 银包铜 |
| 套管长度 | 7.11 mm [ .28 in ] |
| 套管种类 | 螺纹 |
| 套管螺纹尺寸 | 1/4-40 |
| 微动 | 不带 |
| 支撑架 | 不带 |
| 开关类型 | 按钮 |
| 安装类型 | 面板 |
| 额定电压 (VDC) | 28 |
| 产品类型 | 开关 |
| 小尺寸 | 否 |
| 端子电流额定值 (A) | 6 |
| 触觉 | 否 |
| 端接类型 | 线耳 |
| 额定温度 | 标准 |
| 致动器长度 | 13.97 mm [ .55 in ] |
| 致动器种类 | 盖 - 单独订购 |
| 配置（极掷） | 单极 - 双掷 |
| 外壳材料 | 热固材料 |
| 联动 | 否 |
| 致动器外形 | 扩展型 |
| 安装角度 | 垂直 |
| ESD 接地端子 | 不带 |
| 端子电镀 | 银包镀金 |
| 驱动力 | 590 – 1224 g [ 20.8 – 43.18 oz ] |
| 工艺密封 | 否 |
| 注释 | 订购帽型号 C22 或 C23。 |
| 操作功能 | 推-开/推-关 |
| 额定电压 (VAC) | 125, 250 |
| 致动器材料 | 镀镍铜合金 |
| 照明 | 否 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | MPA6 Series |
| Datasheets | MPA Series Drawing |
| Datasheets | ALCOSWITCH GREEN SERIES PUSHBUTTON SWITCH, MPA SERIES |
| Datasheets | 2-1773458-6_GREEN_SERIES_SWITCHES |
