TE Connectivity / Alcoswitch

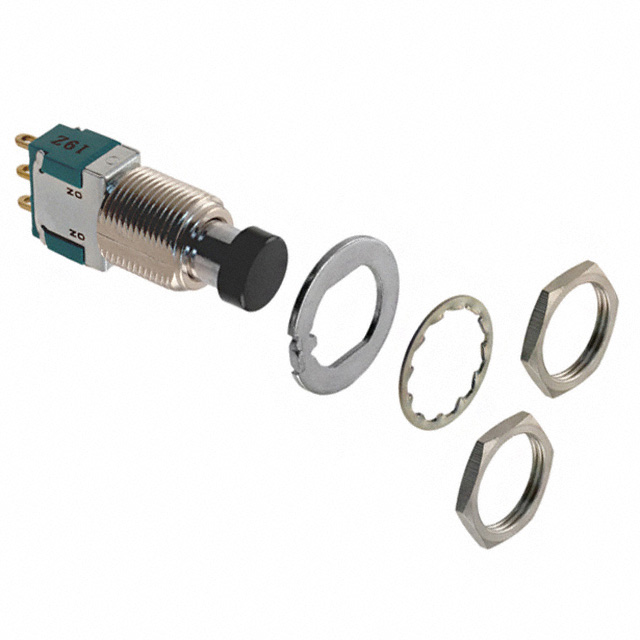

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Industry Aliases | 4-1437567-9, MPG106D |
| Subcategory | Switch Push Button |
| Packaging | Loose Piece |
| Lead Time | 116 Days |
| Switch Function | On-On |
| Current Rating | 6A (AC), 4A (DC) |
| Panel Cutout Dimensions | Circular - 11.80mm Dia |
| Mounting Type | Panel Mount, Rear |
| Voltage Rating - AC | 125V |
| Type | Standard |
| Electrical Life | 50,000 Cycles |
| Termination Style | Solder Lug |
| Color - Actuator/Cap | Black |
| Operating Temperature | -20°C ~ 80°C |
| Actuator Type | Round, Button |
| Standard Package | 25 |
| Voltage Rating - DC | 28V |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
| Contact Configuration | SPDT |
| Contact Current Rating | 4 A, 6 A |
| Contact Material | Silver Plated Copper |
| Switch Operation | On-On |
| Terminal Type | Wire Lug |
| Factory Pack Quantity | 25 |
| Voltage Rating AC | 250 V |
| Terminal Seal | Molded |
| Series | MPG |
| Contact Form | SPDT |
| Mounting Style | Panel |
| Housing Material | Thermoset |
| Contact Plating | Silver |
| Part # Aliases | 4-1437567-9 |
| RoHS | RoHS Compliant |
| ContactForm | SPDT |
| Current,Rating | 6Amps |
| DielectricStrength | 1000VAC |
| MountingHoleSize | 0.468In. |
| MountingType | Panel |
| NumberofPoles | 1 |
| NumberofPositions | 2 |
| Operation | On-On |
| Termination | SolderLugs |
| Voltage,Rating | 250VAC |
| 系列 | MPG, Alcoswitch |
| 面板开口尺寸 | Circular - 11.80mm Dia |
| 开关功能 | On-On |
| 额定电压 - 交流 | 125V |
| 装配类型 | Panel Mount, Rear |
| 电路 | SPDT |
| 额定电流 | 6A (AC), 4A (DC) |
| 颜色 - 致动器/盖帽 | Black |
| 类型 | Standard |
| 致动器类型 | Round, Button |
| 额定电压 - 直流 | 28V |
| Board Level Components | Y |
| 安装类型 | 面板安装 |
| 触点配置 | 单刀双掷 |
| 触点材料 | 镀银铜 |
| 开关操作 | 开 - 开 |
| 触点额定电流 | 6 A @ 120 V 交流 |
| 接端类型 | 线焊片 |
| 端子电流额定值 (A) | 6 |
| 螺纹尺寸 | 15/32-32 UNS-2A |
| プロセス密閉 | 否 |
| 封装方法 | 批量 |
| 端子基材 | 银包铜 |
| 照光 | 否 |
| 端子のめっき | 银包镀金 |
| アクチュエータの力 | 590 – 1224 g [ 20.8 – 43.18 oz ] |
| スナップ アクション | 不带 |
| 开关类型 | 按钮 |
| ギャング | 否 |
| 额定电压 (VDC) | 28 |
| 安装角度 | 垂直 |
| ブッシングねじ山のサイズ | 15/32 |
| ケースの材質 | 热固材料 |
| キャップの直径 | 8.99 mm [ .354 in ] |
| アクチュエータの材質 | 酚树脂 |
| 额定电压 (VAC) | 125, 250 |
| ロー プロファイル | 否 |
| 端接类型 | 线耳 |
| アクチュエータの数 | 单 |
| アクチュエータの長さ | 8 mm [ .315 in ] |
| 動作機能 | 推-开/推-关 |
| 产品类型 | 开关 |
| ESD 接地端子 | 不带 |
| 温度定格 | 标准 |
| 防塵 | 否 |
| 構成（Pole-Throw) | 单极 - 双掷 |
| タクト | 否 |
| 注释 | 帽有其他颜色可选（帽型号 C9）。 |
| サポート ブラケット | 不带 |
| アクチュエータのプロファイル | 扩展型 |
| キャップの高さ | 3.5 mm [ .138 in ] |
| ブッシングのスタイル | 螺纹 |
| アクチュエータのスタイル | 盖 - 已提供 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | MPG Series Drawing |
| Datasheets | ALCOSWITCH GREEN SERIES PUSHBUTTON SWITCH, MPG SERIES |
| Datasheets | 3D PDF |
| Datasheets | 2-1773458-6_GREEN_SERIES_SWITCHES |
